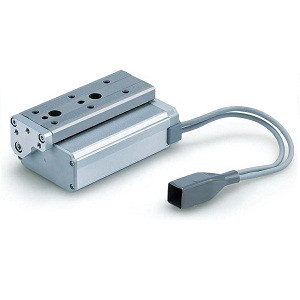

SMC LES8RK-30-S5C918 LES Series Electric Slide Table/Compact Type Step Motor (Servo 24 VDC) Applicable To The JXC Series
SMC
$1,425.00
The SMC LES8RK-30-S5C918 is a part of the LES Series Electric Slide Table, featuring a compact type step motor with a servo of 24 VDC, specifically designed for compatibility with the JXC Series. This model offers a significant reduction in workpiece mounting surface height by up to 12% compared to the LESH, making it an ideal choice for space-constrained applications. It boasts an impressive increase in vertical work load capacity by up to 50%, while also being lightweight with a reduction of up to 29%. The electric slide table delivers a maximum pushing force of 180 N and ensures precise operations with a positioning repeatability of ±0.05 mm. Designed to enhance efficiency, it allows for reduced cycle times with a maximum acceleration/deceleration of 5,000 mm/S² and a maximum speed of 400 mm/s. The LES8RK-30-S5C918 is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and the discontinued LECP6 and LECPMJ models, ensuring versatile integration into various systems.
- Size:
- 8
- Motor Mounting Position:
- Basic Type/R Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8:4mm, Size16:5mm, Size25:8mm
- Stroke:
- Stroke 30mm
- Motor Option:
- Without Option
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type/Length:
- Standard Cable 5m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- DIN Rail Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
