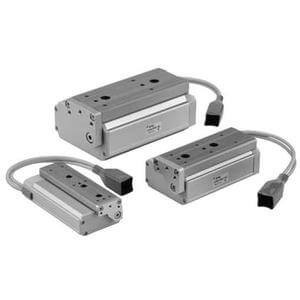

SMC LESH8RJ-75B-S3AN3D electric slide table/high rigidity type

SMC LESH8RJ-75B-S3AN3D LESH-DC Series Electric Slide Table/High Rigidity Type (Servo 24 VDC)/Servo Motor(24 VDC)

SMC
SKU:
LESH8RJ-75B-S3AN3D
Availability:
Contact us to confirm availability and lead times.
$1,540.00
Condition:
New
Current Stock:
Description

LESH-DC Series Electric Slide Table/High Rigidity Type (Servo 24 VDC)/Servo Motor(24 VDC)



  • Easy setting: Data can be set with only 2 items, position and speed; The controller is already set with the data of the actuator; (The actuator and controller are sold as a package.);
  • Integration of the guide rail and the table; Uses a recirculating linear guide for high rigidity and high precision;
  • Reduced cycle time; Max. acceleration and deceleration: 5,000 mm/S2; Max. speed: 400 mm/s;
  • Maximum pushing force; 180 N;
  • Positioning repeatability: ±0.05 mm;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, LECP6 (Manufacture Discontinued), LECPMJ (Manufacture Discontinued)



Additional Information
Size:
8
Motor Mounting Position:
Standard Type,R Type
Motor Type:
Step Motor (Servo 24 VDC)
Lead:
Size8::8 mm,Size16:10 mm,Size25:16 mm
Stroke:
Stroke 75 mm
Motor Option:
With Lock
Body Option:
Without Option
Mounting Style:
Without Side Holder
Actuator Cable Type:
Without Option
Actuator Cable Length:
3 m
Controller Type:
LECPA Pulse Input Type NPN
I/O Cable Length, Communication Plug:
3 m
Controller Mounting:
DIN Rail Mounting
