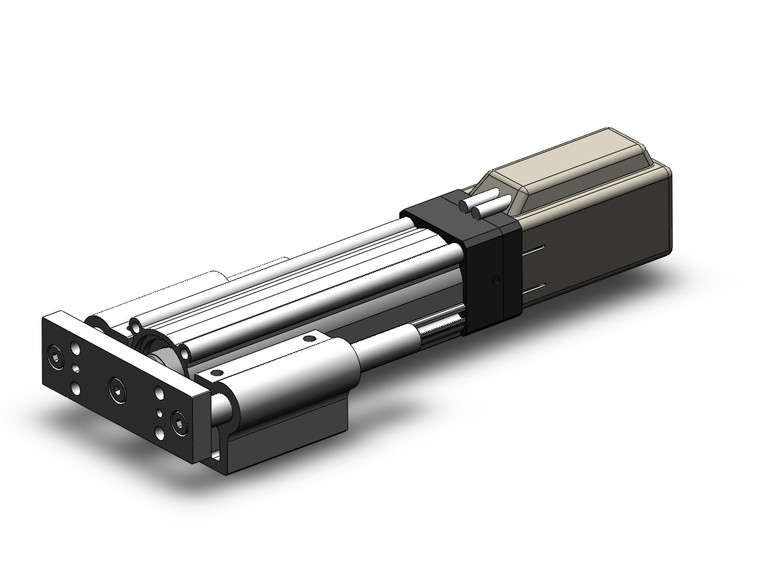

SMC LEYG16MDAA-50C-R36P3D LEYG Series Electric Actuator/Guide Rod Type Step Motor(Servo/24 VDC) Servo Motor(24 VDC)

The SMC LEYG16MDAA-50C-R36P3D is a cutting-edge electric actuator from the LEYG Series, designed to deliver exceptional performance with its guide rod type step motor and servo motor capabilities, both operating at 24 VDC. This actuator is engineered for precision and reliability, featuring a compact integration of guide rods that enhance lateral load resistance and ensure high non-rotating accuracy. It boasts a lateral end load capacity that is five times greater than traditional rod types, particularly in size 25 with a 100mm stroke. This versatile actuator is compatible with both sliding and ball bushing bearings, making it suitable for handling moment loads and incorporating stoppers when using sliding bearings. It offers advanced speed control and positioning capabilities, supporting up to 64 distinct points for precise operations. Users can select between positioning and pushing control, with the added functionality of holding the actuator in place when the rod is pushed against a workpiece. The positioning repeatability is impressively accurate, at ±0.02 mm or less. The LEYG Series is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. Additionally, the series features a high output AC servo motor available in 100/200 W, enhancing high-speed transfer capabilities and supporting high acceleration and deceleration up to 5,000mm/S². The actuator is equipped with a pulse input type and an internal absolute encoder for precise control. Compatible drivers include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, with some models also discontinued. This actuator is ideal for applications requiring high precision, reliability, and versatility in motion control.
