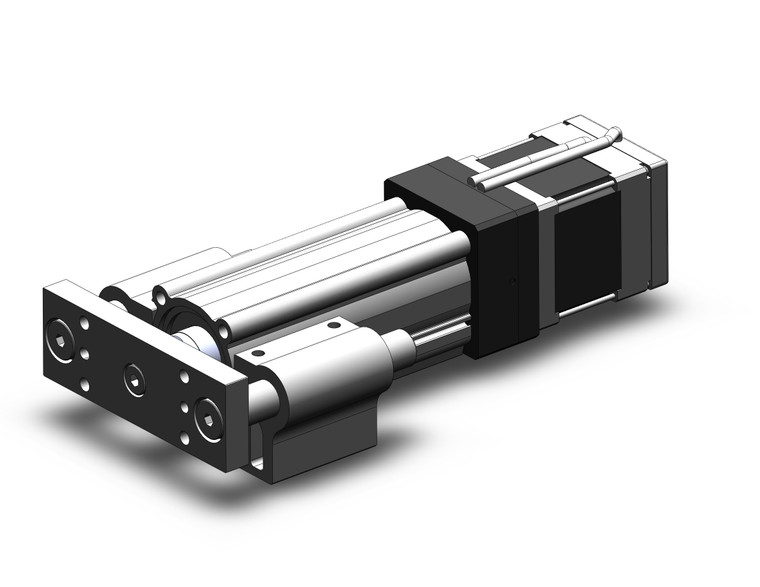

SMC LEYG32MDC-30 LEYG Series Electric Actuator/Guide Rod Type Step Motor(Servo/24 VDC) Servo Motor(24 VDC)

The SMC LEYG32MDC-30 is a cutting-edge electric actuator from the LEYG Series, designed for precision and efficiency. This guide rod type step motor, powered by a 24 VDC servo motor, offers a compact integration of guide rods, ensuring exceptional lateral load resistance and high non-rotating accuracy. It boasts a lateral end load capacity that is five times greater than traditional rod types, particularly in size 25 with a 100 stroke. The actuator is compatible with both sliding and ball bushing bearings, making it suitable for moment load and stopper applications. With advanced speed control and positioning capabilities, the LEYG32MDC-30 can manage up to 64 points, allowing for precise positioning and pushing control. It can securely hold the actuator when pushing the rod against a workpiece, achieving a positioning repeatability of ±0.02 mm or less. The actuator is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The LEYG Series also features a high output AC servo motor, available in 100/200 W, which enhances high-speed transfer capabilities and supports high acceleration/deceleration up to 5,000mm/S2. It includes a pulse input type and an internal absolute encoder for precise control. Compatible drivers include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models no longer in production. This actuator is ideal for applications requiring high precision and reliability.
