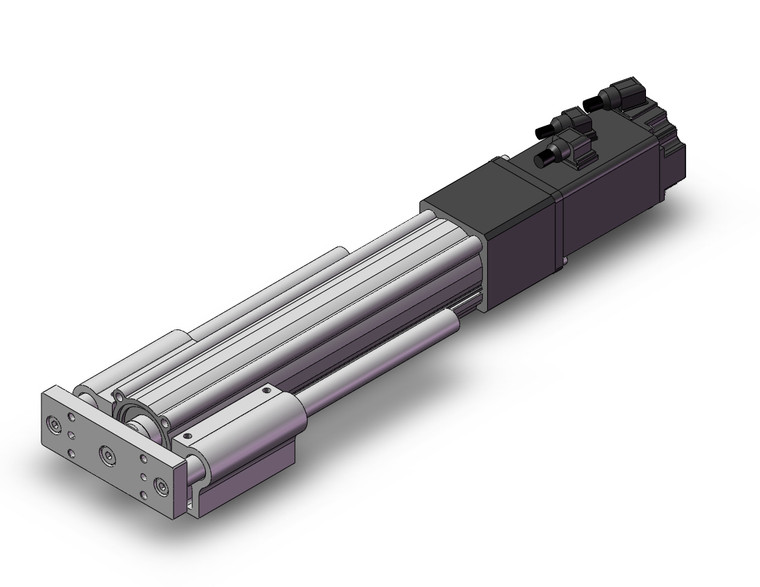

SMC LEYG32MDS7A-150BF-RAB2 LEYG-AC Series Electric Actuator/Guide Rod Type AC Servo Motor

The SMC LEYG32MDS7A-150BF-RAB2 is a cutting-edge electric actuator from the LEYG-AC Series, designed to deliver exceptional performance and precision. This actuator features a compact integration of guide rods, providing superior lateral load resistance and high non-rotating accuracy. It boasts a lateral end load capacity that is five times greater than traditional rod types, particularly in size 25 and 100 stroke applications. Engineered for versatility, the actuator is compatible with both sliding bearing and ball bushing bearing configurations, making it suitable for handling moment loads and incorporating stoppers with sliding bearings. It offers advanced speed control and positioning capabilities, supporting up to 64 distinct points for precise operation. Users can select between positioning and pushing control, with the ability to maintain the actuator's position when the rod is in contact with a workpiece. The LEYG32MDS7A-150BF-RAB2 ensures remarkable positioning repeatability of ±0.02 mm or less, making it ideal for applications requiring high precision. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. This actuator is powered by a high output motor, available in 100/200 W options, and is designed for improved high-speed transfer capabilities. It supports high acceleration and deceleration rates of up to 5,000mm/S2, making it suitable for dynamic applications. The pulse input type actuator is equipped with an internal absolute encoder for enhanced accuracy and reliability. Compatible with a variety of drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and others, the SMC LEYG32MDS7A-150BF-RAB2 is a versatile and robust solution for demanding industrial environments.
