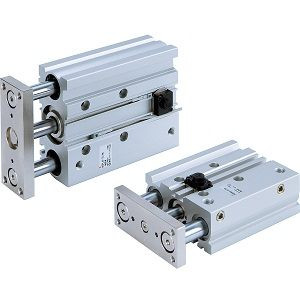

SMC MGPM20-100-HN-A93VL MGP Series Compact Guide Cylinder With End Lock
SMC
$292.40
The SMC MGPM20-100-HN-A93VL MGP Series Compact Guide Cylinder with End Lock is engineered for efficiency and space-saving performance. This innovative cylinder features a weight reduction of up to 24% thanks to its shorter guide rod and thinner plate design. The space required between the bottom of the cylinder body and your equipment is minimized, with the guide rod shortened by a maximum of 22 mm. Additionally, round type and magnetic field resistant auto switches can be mounted directly without the need for a spacer, enhancing the versatility and adaptability of this compact guide cylinder. Ideal for applications where space and weight are critical, this cylinder offers reliable performance and ease of integration.
- Bearing Type:
- Slide Bearing
- Bore Size:
- Bore Size 20 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 100 mm
- Lock Position:
- Head End Lock
- Manual Release Type:
- Non-locking Type
- Auto Switch:
- Reed Auto Switch, Grommet, With Indicator Light, 2-wire, Perpendicular, Lead Wire :3m, Apply Voltage :DC24V,AC100V
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
