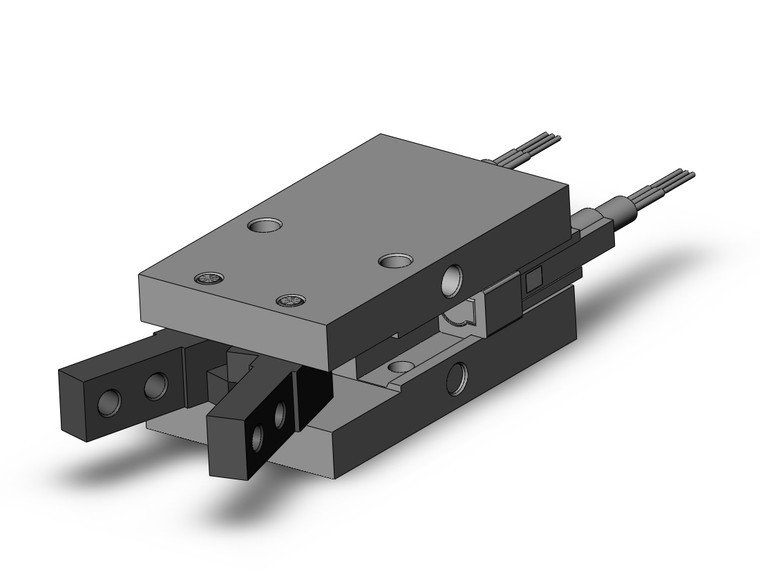

SMC MHC2-10S-M9NMAPC MHC2 Series Air Gripper Angular Style Standard Type Bore Size?10-25
SMC
$240.60
The SMC MHC2-10S-M9NMAPC is a high-performance air gripper from the MHC2 Series, designed with an angular style and standard type configuration. This model features a bore size ranging from 10 to 25, making it versatile for various applications. The gripper achieves a large holding moment thanks to its innovative double piston construction, ensuring reliable and robust performance. Additionally, it includes an integral variable throttle, allowing for precise control and adaptability in different operational settings. Ideal for automation and industrial tasks, this air gripper combines efficiency with advanced engineering to meet your gripping needs.
- Bore Size:
- Bore Size 10 mm
- Action:
- Single Acting
- Finger Material:
- None
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
