Manufacturer's Part Number: 100027492

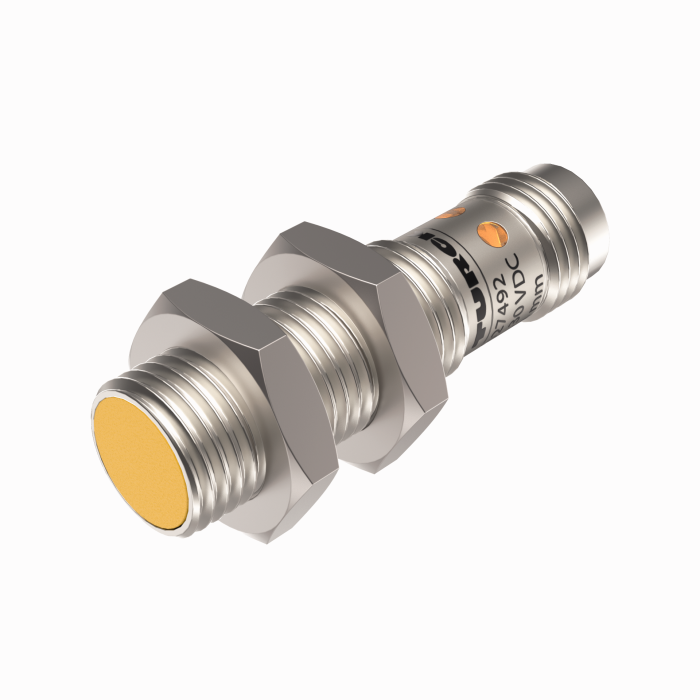

Capacitive Sensor. Ident. no.: 100027492. Detection of metallic and non-metallic objects. Detection of liquids, powders and solid materials. All functions can be parameterized via IO-Link. Three different types of object teaching (one value, two value, dynamic) possible. Available counting function whose content can be called up via IO-Link. Switching status indicated by four LEDs arranged all around the device. M12 × 1 male connector, 4-pin. Robust, compact housing made of nickel-plated brass. M12 threaded design, flush, switching distance = 4 mm
- Function:
- Level detection
- Design:
- Threaded barrel
- Construction size:
- M12 x 1
- Rated switching distance:
- 4 mm
- Operating voltage:
- 18?à30 VDC
- Output function:
- NO/NC programmable, PNP/NPN
- Communication protocol:
- IO-Link
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Metal, Nickel-Plated Brass
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Manual:
- View
- Catalog:
- View
- Datasheet:
- View
