Turck Ni3.5-Q5.5-Rn6X-0.3-Vsg3M Inductive 4613678
Turck
$122.50
Manufacturer's Part Number: 4613678
Inductive Sensor. Ident. no.: 4613678. Rectangular, height 5.5 mm. Active face on top. Plastic, PP. DC 3-wire, 10
30 VDC. Normally closed, NPN output. Pigtail with M5 connector
- Design:
- Rectangular

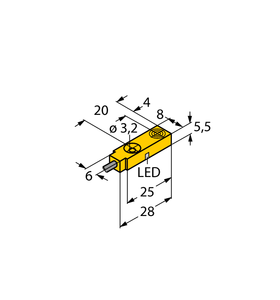

- Construction size:
- 28 x 8 x 5.5 mm, Q5.5
- Rated switching distance:
- 3.5 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NC contact, NPN
- Switching frequency:
- 2.0 kHz
- Electrical connection:
- Cable with connector, M5 ?ù 0.5
- Cable length (L):
- 0.30 m
- Housing material:
- Plastic, PP-GF20
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
