Manufacturer's Part Number: UX00416

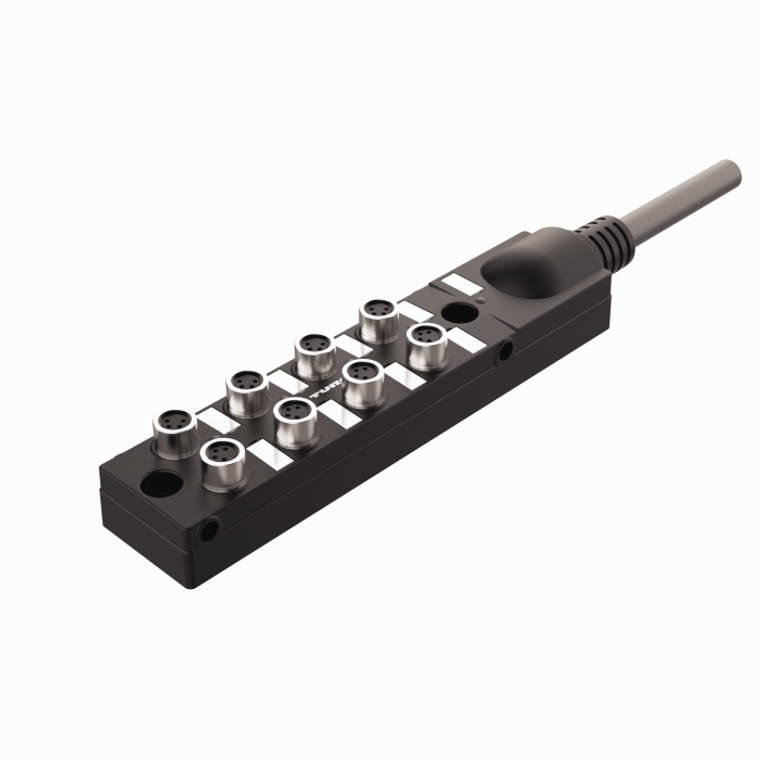

Passive Actuator/Sensor Junction Box, 8 Ports. M8, 4 pole I/O port with cable homerun. Ident. no.: UX00416. Housing material: Nylon. Housing color: Black. Fully encapsulated. Protection class: IP67, IP68, IP69, IP69K; NEMA 1, 3, 4, 6P, 12. RoHS compliant. CE compliant. I/O port: 4-pin. Instrumentation Tray Cable. Black PVC jacket, shielded, 19X22 AWG. Sunlight Resistant. -40 Cold Bend Rating. Oil Resistant. Flame Ratings: UL 1685 FT4, UL1061, CSA FT4
- Application:
- Signal
- Number of ports:
- 8
- I/O Port:
- Female, M8 ?ù 1
- Number of contacts:
- 4
- Homerun connector:
- Cable, Side exit
- Cable length (L):
- 5.0 m
- Housing material:
- Plastic, PA6-GF30
- Voltage:
- 30 V
- Ampacity:
- 2 A per signal contact, total current 6 A
- Approvals:
- CE, UKCA, RoHS
