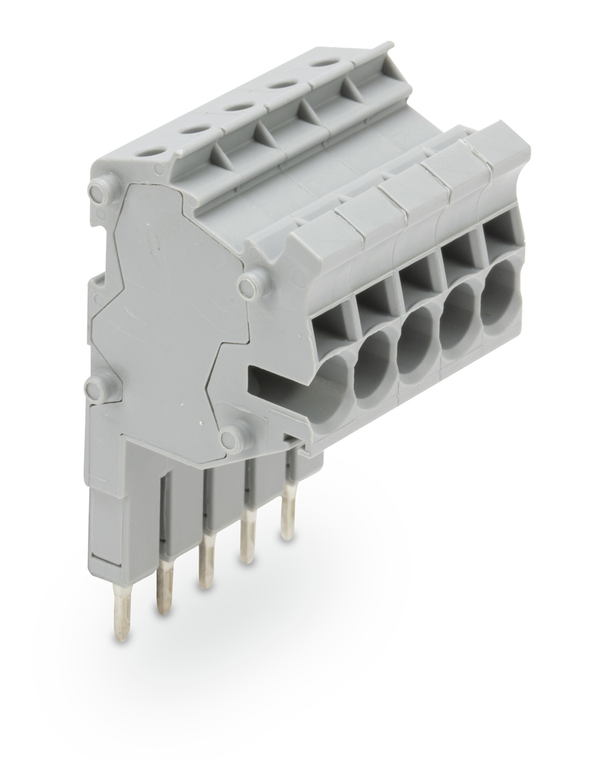

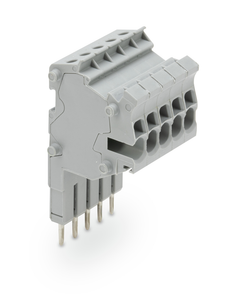

Description Description Description TOPJOB S connector strip; for jumper contact slot; 5-pole Remarks Item properties Miscellaneous Name Value Unit No. of poles 5 Total number of connection points 5 Total number of potentials 5 Color gray Rated voltage (III / 3) [V] 500 V Rated impulse voltage (III / 3) [kV] 6 kV Rated current [A] 24 A Connection technology Push-in CAGE CLAMP Number of connection points connector 1 Nominal cross section 2.5 mm Solid conductor 0.25 4 mm / 22 12 AWG Solid conductor, push-in termination 0.75 4 mm / 18 12 AWG Fine-stranded conductor 0.25 4 mm / 22 12 AWG Fine-stranded conductor with ferrule, push-in termination fr 0.75 mm / 18 AWG Strip length 10 12 mm / 0.39 0.47 Inch Type of wiring Side-entry wiring Marking level Center/side marking Insulating material Polyamide 66 (PA 66) Fire load [MJ] 0.255 MJ Weight [g] 13.735 g Width 26 mm / 1.024 Inch View AllClose
WAGO 2004-555 MSRP: Now: $18.65 Was: TOPJOBS connector strip; for jumper contact slot; 5-pole 2004-555
WAGO 280-555 MSRP: Now: $6.76 Was: 3-conductor actuator supply terminal block; with colored conductor entries; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray 280-555
WAGO 289-555 MSRP: Now: $55.04 Was: Interface module; with solder pin; Female connector; 9-pole; Mating connector with solder connection; Vertical mounting; PCB terminal blocks, double-row; in mounting carrier; 2,50 mm² 289-555
