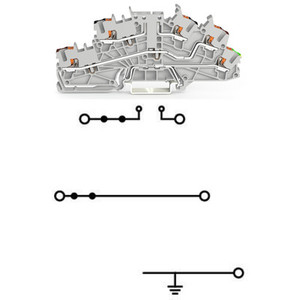

Multilevel installation terminal block; Carrier terminal block without knife; Black upper-deck, brown middle-deck, green-yellow lower-deck printing; P2/P1/PE.

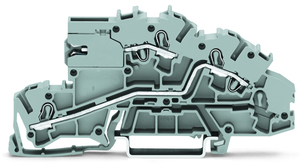

The WAGO 2003 TOPJOB S series is a multilevel installation carrier terminal block featuring three decks, pluggable disconnects, and side and center marking slots, marked "P2/P1/PE." It is gray, supports two feed-through poles plus a protective earth (2P+PE), and accommodates five wires (2 push-in + 3 push-in) with a nominal cross-section of 2.5mm², suitable for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG. It has a rated current of 20A/25A and utilizes Push-in CAGE CLAMP spring connections for secure wiring. The terminal block is designed for DIN-35 rail mounting and has a width of 5.2mm, equivalent to model 20036643.
- actuation type:
- Push-in || Operating tool
- approvals per:
- C22.2 No 158
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 45.2 mm / 1.78 inch
- design:
- Angled
- fine stranded conductor:
- 0.25 4 mm / 22 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1 2.5 mm / 18 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 2.5 mm / 22 14 AWG
- fire load:
- 0.309 MJ
- flammability class per ul94:
- V0
- height:
- 110 mm / 4.331 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 2.5 mm
- nominal voltage iii 3:
- 250 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- note on rated current 1:
- Maximum current depends on accessories used.
- packaging type:
- Box
- rated current:
- 20 A
- rated current 2:
- 25 A
- rated current csa use group b:
- 20 A
- rated current csa use group d:
- 15 A
- rated current ul use group b:
- 6.3 A
- rated current ul use group c:
- 6.3 A
- rated current ul use group d:
- 6.3 A
- rated surge voltage iii 3:
- 4 kV
- rated surge voltage iii 3 2:
- 6 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 150 V
- rated voltage iii 3 2:
- 400 V
- rated voltage ul use group b:
- 250 V
- rated voltage ul use group c:
- 150 V
- rated voltage ul use group d:
- 250 V
- ratings note:
- Potential ground
- ratings note 2:
- Potential potential
- solid conductor:
- 0.25 4 mm / 22 12 AWG
- solid conductor push in termination:
- 0.75 4 mm / 18 12 AWG
- strip length:
- 10 12 mm / 0.39 0.47 inch
- weight:
- 19.942 g
- width:
- 5.2 mm / 0.205 inch
- wiring direction:
- Front-entry wiring
