Wago

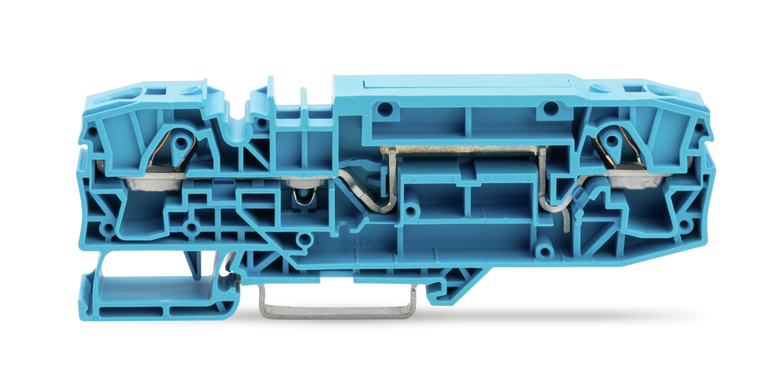

WAGO 2006-8604

SKU:

2006-8604

UPC:

MPN:

2006-8604

Condition:

New

actuation type:

Push-in || Operating tool

approvals per:

C22.2 No 158

color:

Blue

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

33 mm / 1.299 inch

design:

Horizontal type

fine stranded conductor:

0.5 10 mm / 20 8 AWG

fine stranded conductor with ferrule push in termination:

2.5 6 mm / 16 10 AWG

fine stranded conductor with insulated ferrule:

0.5 6 mm / 20 10 AWG

fire load:

0.666 MJ

flammability class per ul94:

V0

height:

106.9 mm / 4.209 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal cross section:

6 mm

nominal voltage iii 3:

1000 V

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

packaging type:

Box

rated current:

30 A

rated current csa use group b:

30 A

rated current csa use group c:

30 A

rated current ul use group b:

30 A

rated current ul use group c:

30 A

rated surge voltage iii 3:

12 kV

rated surge voltage iii 3 2:

12 kV

rated voltage csa use group b:

600 V

rated voltage csa use group c:

1000 V

rated voltage iii 3 2:

1500 V

rated voltage ul use group b:

600 V

rated voltage ul use group c:

600 V

ratings per:

IEC/EN 60947-7-1

solid conductor:

0.5 10 mm / 20 8 AWG

solid conductor push in termination:

2.5 10 mm / 14 8 AWG

strip length:

13 15 mm / 0.51 0.59 inch

weight:

31.185 g

width:

15 mm / 0.591 inch

wiring direction:

Front-entry wiring
