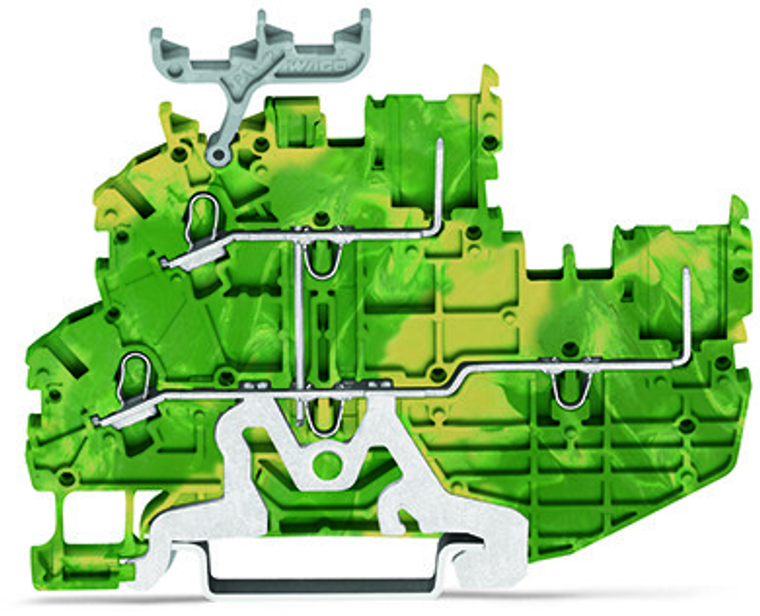

WAGO 2020-2237
Wago
$10.86
X-COM S-Mini ground double-deck carrier/feedthrough terminal block; internally commoned (PE); with marker carrier; rail mount; 2-conductor, 2-pin; 3.5 mm wide; green-yellow.
The WAGO 2020 X-COM S-Mini series carrier ground/earthing terminal block is a double-deck terminal block with internal commoning and side marking slots, marked with "PE" for protective earth. It is green-yellow in color and designed for 1 grounding/protective-earth connection, accommodating 2 push-in and 2 plug-in pins for a total of 4 wires. It supports a nominal cross-section of 1mm² and is suitable for wire sizes ranging from 0.14mm² to 1.5mm² or #24AWG to #16AWG. The terminal block features Push-in CAGE CLAMP spring connections and plug-in pin connections, and it mounts on a DIN-35 rail with dimensions of 35 x 15 or 35 x 7.5 mm, with a width of 3.5mm. It is equivalent to the model 20202237.
- actuation type:
- Operating tool || Push-in
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 61.4 mm / 2.417 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.14 1.5 mm / 24 16 AWG
- fine stranded conductor with ferrule push in termination:
- 0.5 0.75 mm / 20 18 AWG
- fine stranded conductor with insulated ferrule:
- 0.14 0.75 mm / 24 18 AWG
- fire load:
- 0.190 MJ
- flammability class per ul94:
- V0
- height:
- 80.1 mm / 3.154 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 1 mm
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- solid conductor:
- 0.14 1.5 mm / 24 16 AWG
- solid conductor push in termination:
- 0.5 1.5 mm / 20 16 AWG
- strip length:
- 9 11 mm / 0.35 0.43 inch
- weight:
- 11.070 g
- width:
- 3.5 mm / 0.138 inch
- wiring direction:
- Front-entry wiring
