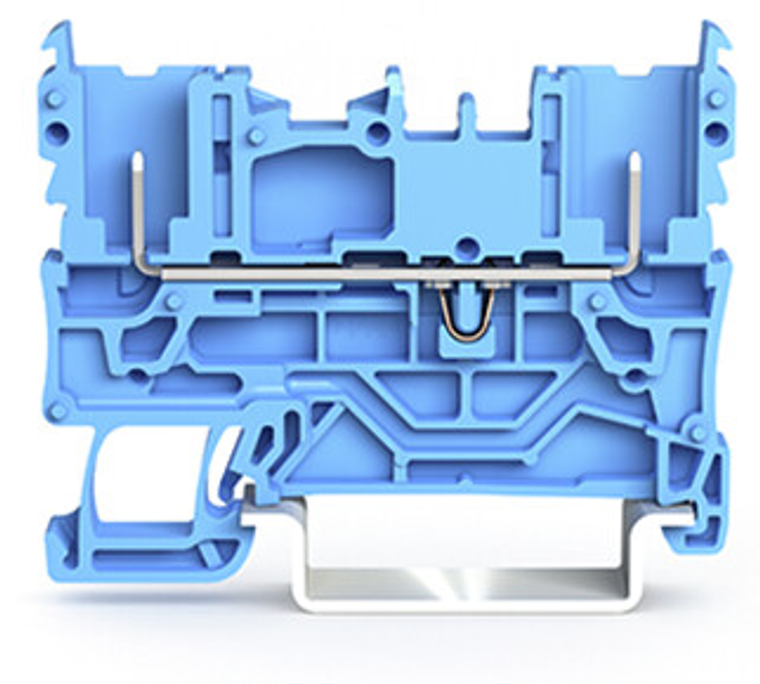

WAGO 2022-1604/999-953 2-Pin Carrier Terminal Block for DIN-Rail 35 x 15 and 35 x 7.5, Blue
Wago
$2.24
2-pin carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; blue.
The WAGO 2022 X-COM S series is a blue, carrier neutral-through terminal block featuring a single deck/level with side and center marking slots. It is designed for neutral-through pole (N) connections and accommodates two wires using plug-in pin connections (1+1). The terminal block is rated for a current of 20A and is mounted on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 5.2mm, equivalent to model number 20221604999953.
- approvals per:
- UL 1059
- color:
- Blue
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 32.5 mm / 1.28 inch
- design:
- Horizontal type
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 52 mm / 2.047 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- number of levels:
- 1
- rated current:
- 20 A
- rated current csa use group c:
- 20 A
- rated current ul use group b:
- 20 A
- rated current ul use group c:
- 20 A
- rated voltage csa use group c:
- 600 V
- rated voltage en ex e ii:
- 630 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60947-7-1
- total number of potentials:
- 1
- weight:
- 5.490 g
- width:
- 5.2 mm / 0.205 inch
