WAGO 2052-306

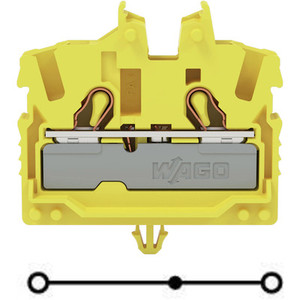

WAGO 2052-306 2-conductor miniature through tb with operating slots 2.5mm², yellow

Wago
SKU:
2052-306
Availability:
Contact us to confirm availability and lead times.
$2.10
Condition:
New
Current Stock:
Description
2-conductor miniature through tb with operating slots 2.5mm², yellow.

The WAGO 2052 TOPJOB S series is a yellow feed-through miniature end terminal block designed for Ex e II applications, featuring a single deck with side and center marking slots. It accommodates one feed-through pole and two wires using push-in connections, suitable for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG, with a nominal cross-section of 2.5mm². The terminal block supports a rated current of 24A or 32A and utilizes Push-in CAGE CLAMP spring connections for secure and efficient wiring. It is designed for flange or surface mounting and is equivalent to model 2052306.
