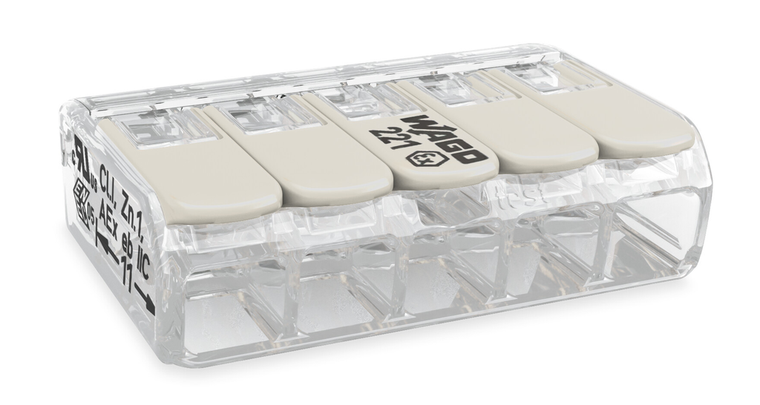

Wago 221-485 Pack of 25

Wago 221-485 5-Conductor Lever Splicing Connector, Transparent, 221 Series, Pack of 25

Wago
SKU:
221-485
Availability:
Contact us to confirm availability and lead times.
$26.75
Condition:
New
Current Stock:
Description
The Wago 221-485 is a 5-conductor compact splicing connector with lever actuation, designed for Ex e increased-safety applications and based on Wago’s 221 Series CAGE CLAMP technology. It connects copper solid, stranded, and fine-stranded conductors from 0.14–4 mm² (24–12 AWG) via side-entry wiring and provides clear visual inspection through its transparent housing with light gray levers. Rated up to 440 V and 32 A in Ex e II applications (20 A / 440 V in UL Use Group C), it supports continuous operating temperatures from -55 to +105 °C and meets UL 60079, IEC/EN 60079-7, and UL94 V2 flammability requirements. The connector is approved only in conjunction with a suitable mounting carrier (e.g., 221-501) and must be installed in an enclosure complying with EN 60079-0/31 for use in hazardous areas. Typical uses include terminal and device wiring in industrial control panels, machinery, and process equipment where quick, tool-free terminations and Ex e conformity are required. The 11 mm strip length, side-entry geometry, and 5-way commoning support compact multi-point distribution and tap connections. Accessories such as the 221-501 Ex mounting carrier enable DIN-rail or screw mounting while maintaining required clearances and creepage distances for hazardous-location operation. Documentation - Technical Datasheet - `https://www.wago.com/221-485` - Installation and Application Instructions (Ex e, mounting carrier 221-501) - `https://www.wago.com/221-501` - 221 Series Lever-Nuts Product Family / Catalog Page - `https://www.wago.com/us/wire-splicing-connectors/compact-splicing-connector/p/221-485` - 2D/3D CAD and CAE Data (221-485) - `https://www.wago.com/medias/221-485-3d-cad-data`
Additional Information
actuation type:
Lever
approvals per:
UL 60079
color:
Transparent
color of actuator:
Light gray
connectable conductor materials:
Copper
connection technology:
CAGE CLAMP
continuous operating temperature:
-55 +105 C
country of origin sales organisation germany:
DE
depth:
18.8 mm / 0.732 inch
fine stranded conductor:
0.14 4 mm / 24 12 AWG
fire load:
0.055 MJ
flammability class per ul94:
V2
height:
8.6 mm / 0.327 inch
nominal cross section:
4 mm
packaging type:
Box
rated current ex e ii:
32 A
rated current ul use group c:
20 A
rated voltage en ex e ii:
440 V
rated voltage ul use group c:
440 V
ratings per:
IEC/EN 60079-7
safety information 1:
The permissible operating voltage of the connector with carrier (440 V or 275 V) depends on the mounting type.
safety information 2:
Only approved in conjunction with a mounting carrier (221-501). Other carriers are possible, see certificate/file. The connectors must be installed in an enclosure meeting the requirements of a recognized protection type per EN 60079-0, Section 1 or
solid conductor:
0.2 4 mm / 24 12 AWG
stranded conductor:
0.2 4 mm / 24 12 AWG
strip length:
11 mm / 0.43 inch
weight:
4.378 g
width:
30 mm / 1.181 inch
wiring direction:
Side-entry wiring
