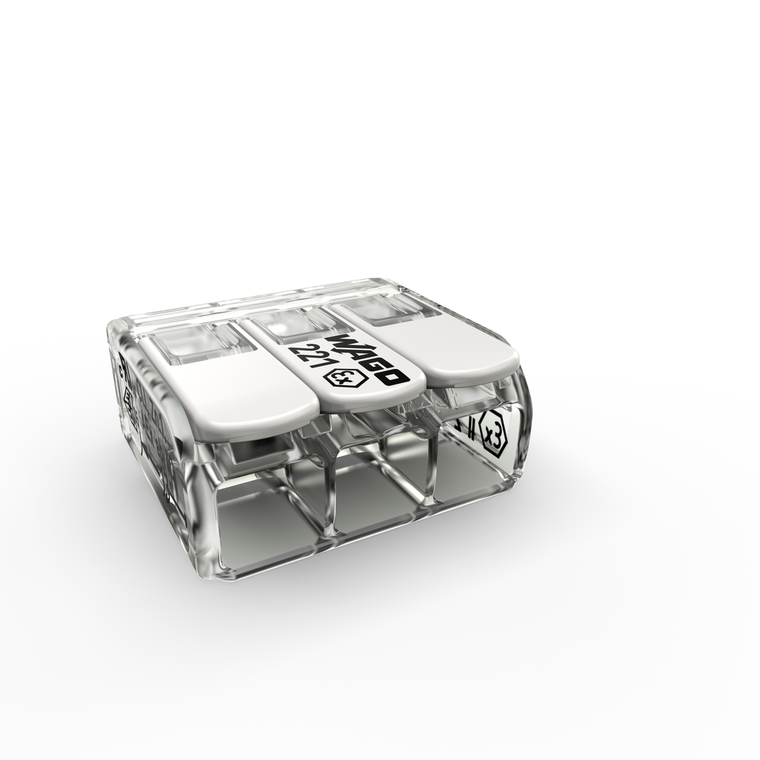

Wago 221-683 3-Conductor Compact Splicing Connector, Lever, 0.56mm², Transparent, Pack of 30
Wago
$40.80
## Product Description
The WAGO 221-683 is a 3-conductor compact splicing connector featuring lever-actuated CAGE CLAMP technology for tool-free termination of solid, stranded, and fine-stranded conductors ranging from 0.5 to 6 mm² (2010 AWG). Operation is straightforward: pull the lever up, insert the conductor, and push the lever down to establish a secure connection. The connector carries a maximum rated current of 41 A and supports nominal voltages up to 320 V (Category II) or 100 V (Category III), with a rated surge voltage of 2.5 kV across all categories.
Built with a transparent polyamide housing and tin-plated copper alloy contacts, the 221-683 is suitable for fixed installation applications including Ex e (ATEX/IECEx) environments in Zones 1 and 2. The connector operates reliably from 60 °C to +100 °C and meets UL 1059, IEC/EN 60664-1, and DIN EN 61984 standards. Its compact form factor and mismating protection make it well-suited for industrial control panels, motor terminals, and power distribution applications where quick conductor changes or high-density wiring is required. The 221 Series is available in 2-, 3-, and 5-conductor configurations, allowing flexibility across different circuit requirements.
## Documentation
- Technical Datasheet: https://www.wago.com/us/wire-splicing-connectors/compact-splicing-connector/p/221-683
- Product Family Overview (221 Series Lever-Nuts): https://www.wago.com/us/discover-wire-and-splicing-connectors-old/221
- Installation and Application Guide: https://www.wago.com/us/products/installation-guides/221-series-splicing-connectors
- 3D CAD Models and Technical Drawings: https://wago.partcommunity.com/3d-cad-models/221-683-compact-splicing-connectors
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- conductor entry direction to mating direction:
- 0
- connection technology:
- CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 17.1 mm / 0.673 inch
- fine stranded conductor:
- 0.08 0.5 mm / 28 20 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 0.34 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 0.34 mm
- fire load:
- 0.048 MJ
- flammability class per ul94:
- V0
- height:
- 11.8 mm / 0.465 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mismating protection:
- Yes
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 100 V
- packaging type:
- Box
- pin spacing:
- 2.5 mm / 0.098 inch
- pole no:
- 6
- rated current:
- 0.25
- rated current csa use group b:
- 0.166666666666667
- rated current ul use group b:
- 0.166666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 150 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 150 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solid conductor:
- 0.08 0.5 mm / 28 20 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- weight:
- 2.660 g
- width:
- 17.1 mm / 0.673 inch
