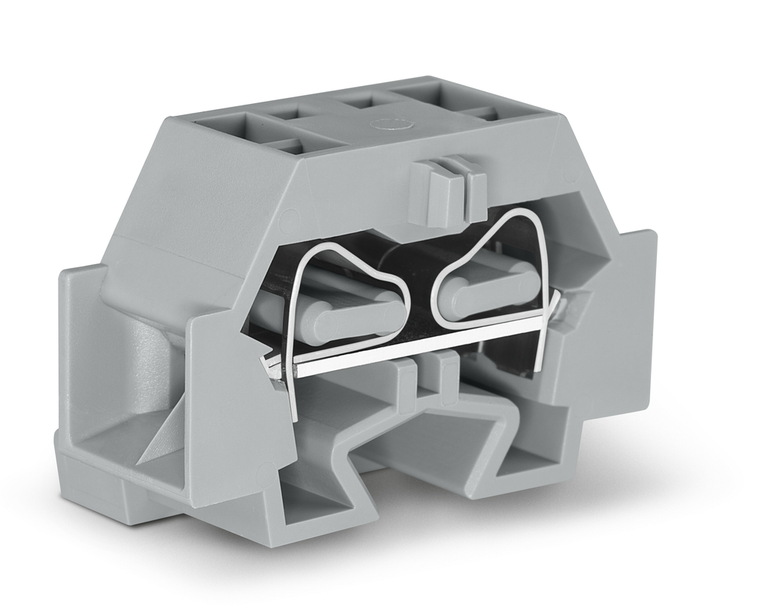

WAGO 262-331 4-Conductor Terminal Block, Pack of 50
Wago
$138.50
4-conductor terminal block; without push-buttons; with fixing flange; 1-pole; for screw or similar mounting types; Fixing hole 3.2 mm Ã; 4 mm²; CAGE CLAMP; 4,00 mm²; gray.
The WAGO 262 series feed-through terminal block is a gray, single-deck component with side marking slots, designed for one feed-through pole and accommodating four wires using two clamps on each side. It supports wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG, and is rated for a current of 32A. The terminal block features CAGE CLAMP spring connections and has a 3.2mm fixing hole for mounting, equivalent to model 262331.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth:
- 33.5 mm / 1.319 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.111 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 23.1 mm / 0.909 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- Mounting flange
- nominal voltage iii 3:
- 630 V
- packaging type:
- Box
- rated current:
- 32 A
- rated surge voltage iii 3:
- 8 kV
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 6.768 g
- width:
- 12 mm / 0.472 inch
- wiring direction:
- Side-entry wiring
