| Description | 4-conductor sensor supply terminal block; Internal commoning, 9 A |
| Remarks | |
| |
| Item properties | Miscellaneous | Name | Value | Unit | | Total number of connection points | 5 | | | Total number of potentials | 3 | | | Color | orange | | | Rated voltage (III / 3) [V] | 250 | V | | Rated impulse voltage (III / 3) [kV] | 4 | kV | | Rated current [A] | 18 | A | | Number of levels | 4 | | | Connection technology | CAGE CLAMP | | | Number of connection points connector | 5 | | | Actuation type | Operating tool | | | Connectable conductor materials | Copper | | | Solid conductor | 0.08 2.5 mm / 28 12 AWG | | | Fine-stranded conductor | 0.08 2.5 mm / 28 12 AWG | | | Strip length | 6 7 mm / 0.24 0.28 Inch | | | Note (conductor cross-section) | 12 AWG: THHN, THWN | | | Type of wiring | Front-entry wiring | | | Design | horizontal | | | Marking level | Side marking | | | Fire load [MJ] | 1.405 | MJ | | Weight [g] | 11.03 | g | | Width | 5 mm / 0.197 Inch | | | Height from upper-edge of DIN-35 rail | 39 mm / 1.535 Inch | | | Depth | 83 mm / 3.268 Inch | | | Type of mounting | DIN-35 x 15 carrier rail | | | Safety information 1 | Internal bridge: 9A | | |
.

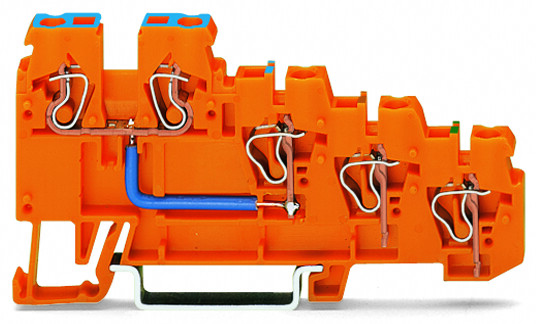

The WAGO 270 series sensor supplementary terminal block is an orange, quadruple-deck terminal block with internal commoning and side marking slots. It accommodates 4 conductors and 5 wires (5 clamps) for wire sizes ranging from 0.08mm² to 2.5mm² (#28AWG to #12AWG) and supports a rated current of 18A. It features CAGE CLAMP spring connections and is designed for DIN-35 rail mounting with a 5mm width, equivalent to model 270574.
