Wago 281-603/281-410

WAGO 281-603/281-410 Component terminal block; 2-conductor; with diode 1N4007; anode, left side; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP; 4,00 mm²; gray

Wago
SKU:
51168552
$14.65
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

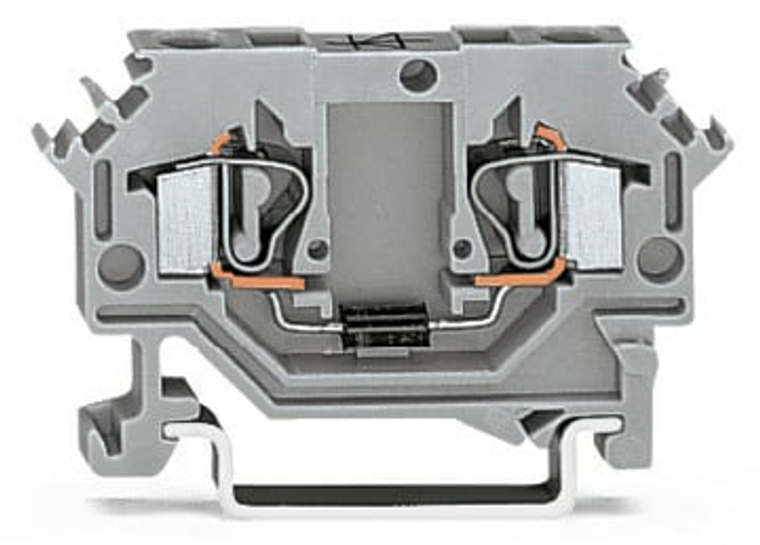

Component terminal block; 2-conductor; with diode 1N4007; anode, left side; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP; 4,00 mm²; gray.

The WAGO 281 series component feed-through terminal block features a single deck with a diode (1N4007) positioned with the anode on the left side, and includes side marking slots. It has one feed-through pole accommodating two wires via two clamps, suitable for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG. The terminal block supports a rated current of 0.5A and utilizes CAGE CLAMP spring connections for secure wiring. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 6mm, equivalent to model 281603281410.

Additional Information
actuation type:
Operating tool
connectable conductor materials note:
Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
color:
Gray
connectable conductor materials:
Copper || Aluminum
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
29 mm / 1.142 inch
design:
Horizontal type
fine stranded conductor:
0.08 4 mm / 28 12 AWG
fire load:
0.143 MJ
flammability class per ul94:
V0
height:
53 mm / 2.087 inch
insulation material:
Polyamide (PA66)
marking level:
Side marking
mounting type:
DIN-35 rail
packaging type:
Box
rated current:
0.5 A
ratings per:
IEC/EN 60947-7-1
solid conductor:
0.08 4 mm / 28 12 AWG
strip length:
9 10 mm / 0.35 0.39 inch
weight:
7.300 g
width:
6 mm / 0.236 inch
wiring direction:
Front-entry wiring
