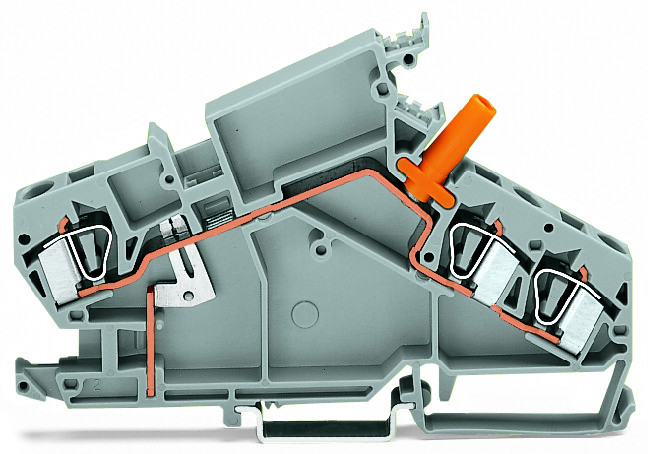

WAGO 282-865 3-Conductor Through Terminal Block with Touch-Proof Test Socket
Wago
$16.59
Screw-type through terminal block; 6 mm; with touch-proof test socket; e.g., current transformer circuits; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP
Electrical Data
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 30 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.2 6 mm / 24 10 AWG
- Fine-stranded conductor: 0.2 6 mm / 24 10 AWG
- Strip length: 12 13 mm / 0.47 0.51 inch
- Total number of connection points: 3
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
Geometrical Data
- Width: 8 mm / 0.315 inch
- Height from upper-edge of DIN-35 rail: 74 mm / 2.913 inch
- Depth: 122 mm / 4.803 inch
Mechanical Data
- Design: Angled
- Type of mounting: DIN-35 rail
- Marking level: Center marking
Material Data
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.615 MJ
- Weight: 38.608 g
Commercial data
- Packaging type: BOX
- Country of origin: CN
- GTIN: 4044918754224
- Customs Tariff No.: 85369010000
The WAGO 282 series feed-through terminal block is a gray, single-deck unit with a center marking slot and a touchproof test point. It features one feed-through pole with three wire connections (one clamp and two clamps) suitable for wire sizes ranging from 0.2mm² to 6mm² or #24AWG to #10AWG. The terminal block supports a rated current of 30A and utilizes CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has an 8mm width, equivalent to model 282865.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 74 mm / 2.913 inch
- design:
- Angled
- fine stranded conductor:
- 0.2 6 mm / 24 10 AWG
- fire load:
- 0.615 MJ
- flammability class per ul94:
- V0
- height:
- 122 mm / 4.803 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- rated current:
- 30 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.2 6 mm / 24 10 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- weight:
- 38.608 g
- width:
- 8 mm / 0.315 inch
- wiring direction:
- Front-entry wiring
