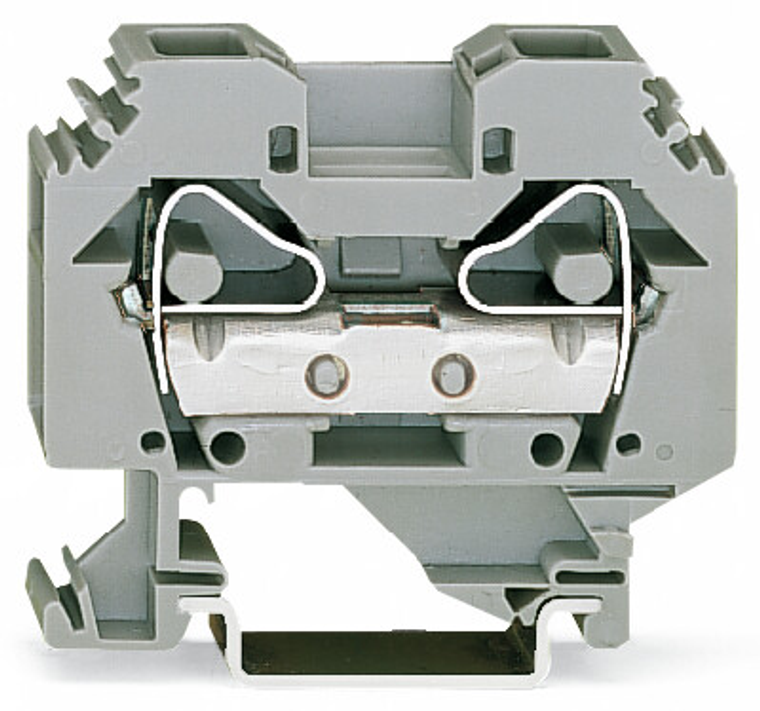

2-conductor through terminal block; 16 mm²; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 16,00 mm²; gray.
The WAGO 283 series feed-through terminal block is a gray, single-deck unit with side marking slots, designed for one feed-through pole and two wires using one clamp each. It accommodates wire sizes from 0.2mm² to 16mm² or #24AWG to #6AWG and supports a rated current of 76A. The terminal block features CAGE CLAMP spring connections and mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 12mm, equivalent to model 283101.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 45.5 mm / 1.791 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.2 16 mm / 24 6 AWG
- fire load:
- 0.374 MJ
- flammability class per ul94:
- V0
- height:
- 58 mm / 2.283 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 800 V
- packaging type:
- Box
- rated current:
- 76 A
- rated surge voltage iii 3:
- 8 kV
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.2 16 mm / 24 6 AWG
- strip length:
- 16 17 mm / 0.63 0.67 inch
- weight:
- 27.214 g
- width:
- 12 mm / 0.472 inch
- wiring direction:
- Side-entry wiring
