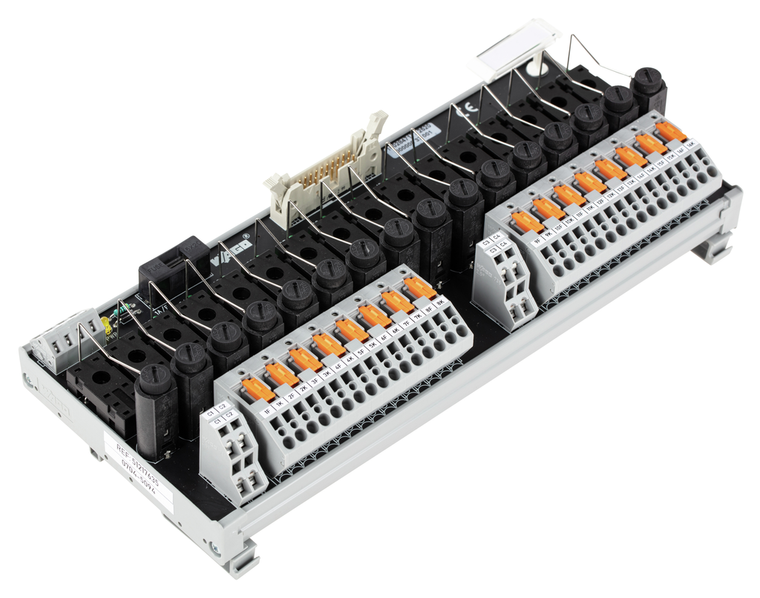

WAGO 704-5094 Interface Module for System Wiring, 20-Pole Pluggable Connector, 16-Channel Relay Output
Wago
$1,122.00
Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 20-pole; 16-channel relay output; 1 make contact; with disconnect terminal block and fuse; without relay; in mounting carrier.
The WAGO 704 series relay output interface module is designed for mounting on a DIN-35 rail and features a 20-pole configuration with a supply voltage range of 21.6-26.4Vdc (24Vdc nominal). It includes a 20-pin male connector (DIN 41651) for system connections and spring CAGE CLAMP terminals for both system (32-pin for 0.08 to 1.5mm² cables) and field (8-pin for 0.08 to 2.5mm² cables) connections. The module is rated for operation in ambient temperatures from -25°C to +50°C and is equivalent to model 7045094.
- compatible plc i o card types:
- 6ES7 313-5BE01-0AB0 || 6ES7 313-5BG04-0AB0 || 6ES7 313-6BE01-0AB0 || 6ES7 313-6BF03-0AB0 || 6ES7 313-6CE01-0AB0 || 6ES7 313-6CF03-0AB0 || 6ES7 314-6BF01-0AB0 || 6ES7 314-6BG03-0AB0 || 6ES7 314-6CF01-0AB0 || 6ES7 314-6CG03-0AB0 || 6ES7 322-1BH01-0AA0
- compatible plc modules:
- Siemens S7-300 || Siemens S7-400 || Siemens S7-1500 || GE Fanuc 9030 || GE Fanuc RX3i || Schneider Modicon TM3 || Schneider TSX || Schneider Twido || Schneider Modicon M340 || Schneider Modicon Quantum || Rockwell Compact Logix || Rockwell Control Lo
- connection technology 4:
- CAGE CLAMP
- connection type 1:
- System
- connection type 2:
- Field
- connection type 3:
- Field
- connection type 4:
- Power supply
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 55 mm / 2.165 inch
- design 2:
- PCB terminal blocks
- design 3:
- PCB terminal blocks (double-deck)
- design 4:
- PCB terminal blocks
- dielectric strength control load circuit ac 1 min:
- 4 kVrms
- dielectric strength load load circuit ac 1 min:
- 1 kVrms
- fine stranded conductor 2:
- 0.08 2.5 mm / 28 12 AWG
- fine stranded conductor 3:
- 0.08 2.5 mm / 28 12 AWG
- fine stranded conductor 4:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 3.044 MJ
- height:
- 105 mm / 4.134 inch
- inputs outputs:
- 16-channel relay output
- internal fuse:
- Supply: 1 A: Relay output: 2 A
- limiting continuous current:
- 0.0833333333333333
- mating direction:
- Vertical
- mounting type:
- DIN-35 rail
- nominal operating voltage:
- DC 24 V
- number of make switch on contacts:
- 1
- operating voltage range:
- 10 %
- packaging type:
- Box
- pluggable connectors:
- DIN 41651 male connector
- pole number 1:
- 20
- pole number 2:
- 32
- pole number 3:
- 8
- pole number 4:
- 4
- pollution degree:
- 2
- rated surge voltage:
- 0.8 kV
- rated voltage:
- 50 V
- relative humidity:
- ¤ 85% (non-condensing)
- solid conductor 2:
- 0.08 2.5 mm / 28 12 AWG
- solid conductor 3:
- 0.08 2.5 mm / 28 12 AWG
- solid conductor 4:
- 0.08 2.5 mm / 28 12 AWG
- specialty functions:
- With disconnect/test terminal blocks || With output fuse || Without basic relay
- status indicator:
- Green LED (channel) || Yellow LED (power supply)
- strip length 2:
- 8 9 mm / 0.31 0.35 inch
- strip length 3:
- 5 6 mm / 0.2 0.24 inch
- strip length 4:
- 5 6 mm / 0.2 0.24 inch
- surrounding air temperature operation:
- -25 50 C
- surrounding air temperature storage:
- -40 70 C
- switching power resistive max:
- AC 500 VA: DC 50 W
- switching voltage max:
- AC 250 V: DC 48 V
- wago basic relay:
- 788-154
- wago connector 2:
- WAGO 742 Series
- wago connector 3:
- WAGO 736 Series
- weight:
- 421.685 g
- width:
- 240 mm / 9.449 inch
