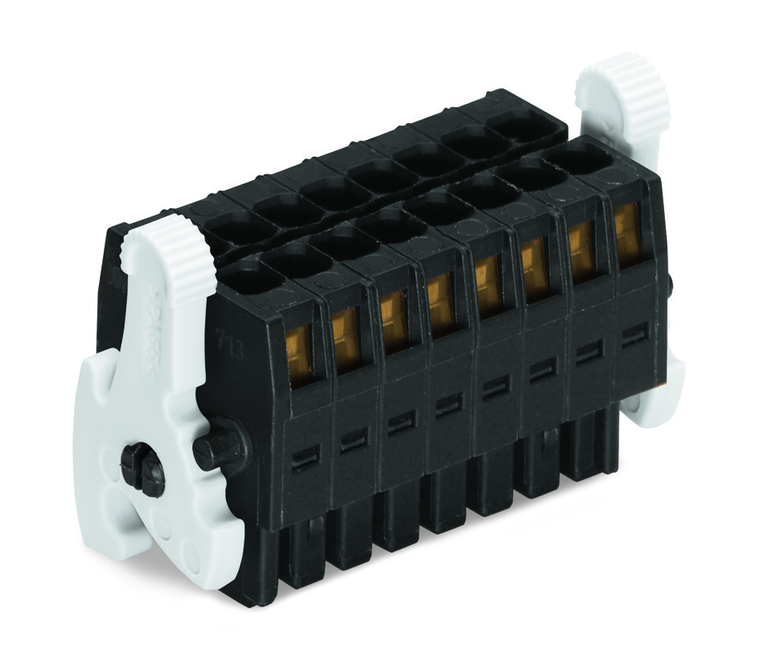

WAGO 713-1106/037-9037 1-conductor female connector, 2-row; CAGE CLAMP; 1.5 mm²; Pin spacing 3.5 mm; 12-pole; 100% protected against mismating; Levers; direct marking; 1,50 mm²; black
Wago
$14.59
1-conductor female connector, 2-row, CAGE CLAMP, black.
The WAGO component equivalent to 71311060379037 is a specific part or model within WAGO's product lineup, likely used for electrical or automation applications. This component is identified by its unique part number, which helps in ensuring compatibility and proper functionality within various systems or assemblies.
- actuation type:
- Operating tool
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Black
- conductor entry direction to mating direction:
- 0
- connection technology:
- CAGE CLAMP«
- connector connection type:
- For conductor
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- PL
- depth:
- 16 mm / 0.63 inch
- fine stranded conductor:
- 0.08 ª 1.5 mm / 28 ª 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 ª 1 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 ª 1 mm
- fire load:
- 0.098 MJ
- flammability class per ul94:
- V0
- height:
- 18.8 mm / 0.74 inch
- insulation material:
- Glass fiber-reinforced polyamide (PA66 GF)
- legend ratings:
- (III / 2) « Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 ª +100 C
- locking of plug in connection:
- Locking lever
- material group:
- II
- mismating protection:
- Yes
- nominal voltage ii 2:
- 250 V
- nominal voltage iii 3:
- 80 V
- packaging type:
- Box
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 12
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 300 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 50 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS ´ MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solid conductor:
- 0.08 ª 1.5 mm / 28 ª 16 AWG
- strip length:
- 6 ª 7 mm / 0.24 ª 0.28 inch
- weight:
- 7.250 g
- width:
- 29.5 mm / 1.161 inch
