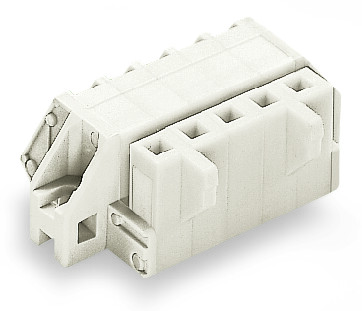

Wago 721-305/031-000

WAGO 721-305/031-000 1-conductor female plug; angled; 100% protected against mismating; clamping collar; 2.5 mm²; Pin spacing 5 mm; 5-pole; 2,50 mm²; light gray

Wago
SKU:
721-305/031-000
Availability:
Contact us to confirm availability and lead times.
$6.59
Condition:
New
Current Stock:
Description
Description Angled female connector; with fixing flanges; 5-pole; Pin spacing 5 mm / 0.197 in; 100% protected against mismating; for panel mounting; for screw or similar mounting types
Remarks Item description:
  • Universal connection for all conductor types
  • Available with snap-in mounting feet or fixing flanges for panel or through-panel mounting
  • With snap-in mounting feet and mounting adapter for DIN 35 rail mounting
  • Easy conductor termination, even when halves are mated
  • 100% protected against mismating



Item properties

Miscellaneous

Name Value Unit
No. of poles  5
Pin spacing  5 mm (0.197 in)
Total number of connection points  5
Total number of potentials  5
Color  light gray
Ratings per  IEC/EN 60664-1
Rated voltage (III / 3) [V]  320  V
Rated impulse voltage (III / 3) [kV]  4  kV
Rated voltage (III/2) [V]  320  V
Rated impulse voltage (III / 2) [kV]  4  kV
Rated voltage (II / 2) [V]  630  V
Rated impulse voltage (II / 2) [kV]  4  kV
Rated current [A]  12  A
Legend for ratings  (III / 2) Overvoltage category III / Pollution degree 2
Number of connection objects  1
Number of levels  1
Connection technology  CAGE CLAMP
Number of connection points connector  1
Actuation type  Operating tool
Solid conductor  0.08 2.5 mm / 28 12 AWG
Fine-stranded conductor  0.08 2.5 mm / 28 12 AWG
Fine-stranded conductor with ferrule with plastic collar  0.25 1.5 mm /
Fine-stranded conductor with ferrule without plastic collar  0.25 2.5 mm /
Strip length  8 9 mm / 0.31 0.35 Inch
Material group  I
Insulating material  Polyamide 66 (PA 66)
Flammability class per UL94  V0
Limit temperature range  -60 85 C
Clamping spring material  Chrome-nickel spring steel (CrNi)
Contact material  Copper alloy
Contact plating  tin-plated
Fire load [MJ]  0.188  MJ
Weight [g]  8.1  g
Width  24.8 mm / 0.976 Inch
Height  13.1 mm / 0.516 Inch
Depth  27.25 mm / 1.073 Inch
Pin spacing from [mm]  5  mm
Type of mounting  Panel mounting
Mounting type  Snap-in mounting foot
.

The WAGO component equivalent to 721305031000 is a specific part used in electrical and electronic applications, known for its reliability and efficiency. This component is typically utilized in various industrial and automation systems, providing secure and maintenance-free connections. It is designed to meet high standards of performance and safety, ensuring optimal functionality in demanding environments. The equivalent part offers similar specifications and compatibility, making it a suitable replacement for the original WAGO component.

Additional Information
actuation type:
Operating tool
approvals per:
UL 1059
clamping spring material:
Chrome nickel spring steel (CrNi)
color:
Light gray
conductor entry direction to mating direction:
90
connection technology:
CAGE CLAMP
connector connection type:
For conductor
contact material:
Copper alloy
contact plating:
Tin-plated
contact type pluggable connector:
Female connector/socket
country of origin sales organisation germany:
PL
depth:
27.25 mm / 1.073 inch
design:
Angled: mountable
fine stranded conductor:
0.08 2.5 mm / 28 12 AWG
fine stranded conductor with insulated ferrule:
0.25 1.5 mm
fine stranded conductor with uninsulated ferrule:
0.25 2.5 mm
fire load:
0.188 MJ
flammability class per ul94:
V0
height:
13.1 mm / 0.516 inch
housing sheet thickness:
0.6 1.2 mm / 0.024 0.047 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 2) Overvoltage category III / Pollution degree 2
limit temperature range:
-60 +85 C
locking of plug in connection:
Without
material group:
I
mismating protection:
Yes
mounting type:
Mounting flange || Panel mounting
nominal voltage ii 2:
630 V
nominal voltage iii 3:
320 V
packaging type:
Box
pin spacing:
5 mm / 0.197 inch
pole no:
5
rated current:
0
rated current csa use group b:
15 A
rated current csa use group d:
0.416666666666667
rated current ul 1977:
15 A
rated current ul use group b:
15 A
rated current ul use group d:
0.416666666666667
rated surge voltage ii 2:
4 kV
rated surge voltage iii 2:
4 kV
rated surge voltage iii 3:
4 kV
rated voltage csa use group b:
300 V
rated voltage csa use group d:
300 V
rated voltage iii 2:
320 V
rated voltage ul 1977:
600 V
rated voltage ul use group b:
300 V
rated voltage ul use group d:
300 V
ratings per:
IEC/EN 60664-1
safety information 1:
The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
solid conductor:
0.08 2.5 mm / 28 12 AWG
strip length:
7 8 mm / 0.28 0.31 inch
weight:
8.100 g
width:
24.8 mm / 0.976 inch
