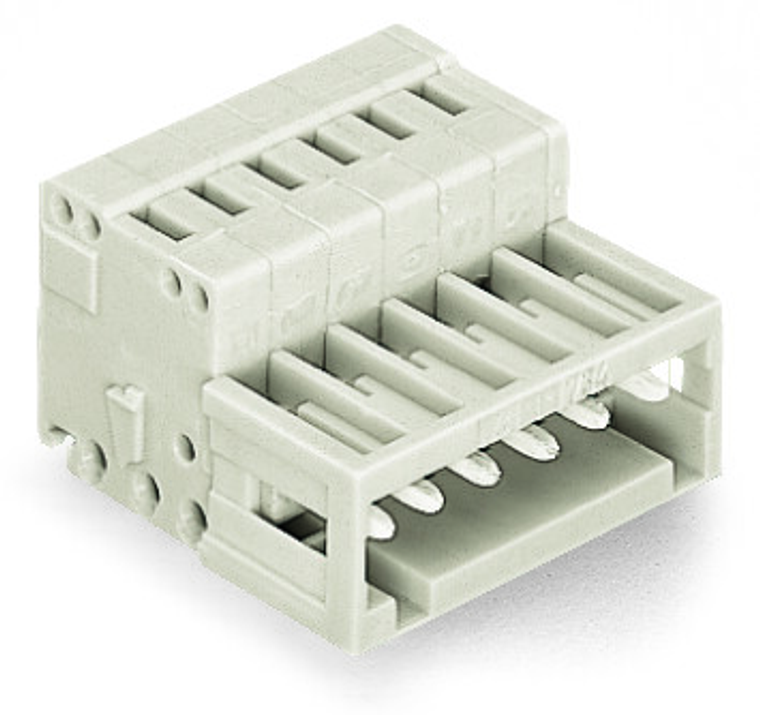

WAGO 734-308 1-conductor male connector; 100% protected against mismating; 1.5 mm²; Pin spacing 3.5 mm; 8-pole; 1,50 mm²; light gray
Wago
$8.97
1-conductor male connector; CAGE CLAMP; 1.5 mm²; Pin spacing 3.5 mm; 8-pole; 100% protected against mismating; 1,50 mm²; light gray.
The WAGO component equivalent to 734308 is a specific part used in electrical and electronic applications, known for its reliability and efficiency. This component is designed to facilitate secure and efficient electrical connections, often utilized in various industrial and automation settings. It is recognized for its high-quality construction, ensuring durability and consistent performance in demanding environments. The equivalent part to 734308 maintains the same standards and specifications, providing a reliable alternative for users needing this specific type of electrical connector.
- actuation type:
- Operating tool
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- conductor entry direction to mating direction:
- 0
- connection technology:
- CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 18.6 mm / 0.732 inch
- fine stranded conductor:
- 0.08 1.5 mm / 28 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1.5 mm
- fire load:
- 0.045 MJ
- flammability class per ul94:
- V0
- height:
- 13.4 mm / 0.528 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Locking lever
- material group:
- I
- mismating protection:
- Yes
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- note conductor cross section:
- Terminating 1.5 mm conductors is possible: however insulation diameter does not allow clamping units to be terminated in a row.
- packaging type:
- Box
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 2
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solid conductor:
- 0.08 1.5 mm / 28 14 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 2.207 g
- width:
- 18.8 mm / 0.74 inch
