Wago

WAGO 741-602 Pack of 70

(No reviews yet) Write a Review
SKU:
741-602
MPN:
741-602
Condition:
New
actuation type:
Push-button
approvals per:
UL 1059
clamping spring material:
Chrome nickel spring steel (CrNi)
color:
Orange
conductor connection direction to pcb:
0
connection technology:
CAGE CLAMP
contact material:
Electrolytic copper (ECu)
contact plating:
Tin-plated
country of origin sales organisation germany:
CH
depth:
12.8 mm / 0.504 inch
drilled hole diameter with tolerance:
1.1 (+0.1) mm
fine stranded conductor:
0.08 2.5 mm / 28 12 AWG
fine stranded conductor with insulated ferrule:
0.25 1.5 mm
fine stranded conductor with uninsulated ferrule:
0.25 1.5 mm
fire load:
0.142 MJ
flammability class per ul94:
V0
height:
22.5 mm / 0.886 inch
height from the surface:
18.5 mm / 0.728 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 2) Overvoltage category III / Pollution degree 2
limit temperature range:
-60 +105 C
material group:
I
nominal voltage ii 2:
1000 V
nominal voltage iii 3:
630 V
number of solder pins per potential:
2
packaging type:
Box
pcb contact:
THT
pin spacing:
10.16 mm / 0.4 inch
pole no:
2
rated current:
16 A
rated current csa use group b:
16 A
rated current csa use group d:
0.416666666666667
rated current ul use group b:
0.416666666666667
rated current ul use group d:
0.416666666666667
rated surge voltage ii 2:
8 kV
rated surge voltage iii 2:
8 kV
rated surge voltage iii 3:
8 kV
rated voltage csa use group b:
300 V
rated voltage csa use group d:
300 V
rated voltage iii 2:
1000 V
rated voltage ul use group b:
300 V
rated voltage ul use group d:
300 V
ratings per:
IEC/EN 60664-1
solder pin arrangement:
Over the entire terminal strip (in-line)
solder pin dimensions:
0.7 x 0.7 mm
solder pin length:
4 mm
solid conductor:
0.08 2.5 mm / 28 12 AWG
strip length:
5 6 mm / 0.2 0.24 inch
weight:
5.573 g
width:
16.66 mm / 0.656 inch
  • Wago 741-602 Pack of 70
  • Wago 741-602 Pack of 70
$142.80

Description

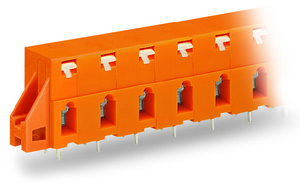

PCB terminal blockpush-button 2.5 mm Pin spacing 10.16 mm 2-pole, orange

  • Feedthrough terminal blocks with push-button actuated CAGE CLAMP<sup></sup>
  • Simple, push-button wiring
  • Test slot integrated into upper-portion of conductor entry for test pins
.

The WAGO component equivalent to 741602 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical circuits, ensuring efficient conductivity and safety. This component is typically used in industrial, commercial, and residential electrical installations, offering features such as easy handling, robust construction, and compatibility with different wire sizes and types. The WAGO 741602 equivalent is known for its high-quality performance and adherence to industry standards, making it a preferred choice for professionals in the electrical and electronics fields.
