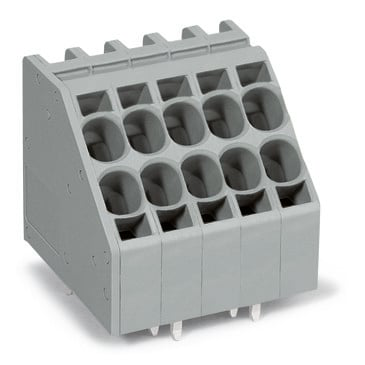

WAGO 746-2302 2-Pole 2-Level PCB Terminal Block, 7.5mm Pitch, Push-in CAGE CLAMP®, 50A, 1000V, Gray
Wago
$4.05
2-conductor PCB terminal block; 10 mm²; Pin spacing 7.5 mm; 2-pole; Push-in CAGE CLAMP; 10,00 mm²; gray.
The WAGO component equivalent to 7462302 is a specific part or module used in electrical and automation systems, known for its reliability and efficiency. This component is designed to facilitate various functions such as signal transmission, power distribution, or control processes within an industrial or commercial setting. It is compatible with other WAGO products and systems, ensuring seamless integration and optimal performance. The equivalent part number indicates that it meets the same specifications and standards as the original, providing a reliable alternative for maintenance, upgrades, or new installations.
- actuation type:
- Operating tool
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- conductor connection direction to pcb:
- 45
- connection technology:
- Push-in CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 37 mm / 1.457 inch
- drilled hole diameter with tolerance:
- 2.2 (+0.1) mm
- fine stranded conductor:
- 0.5 10 mm / 20 8 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 6 mm
- fine stranded conductor with uninsulated ferrule:
- 0.5 6 mm
- fire load:
- 0.301 MJ
- flammability class per ul94:
- V0
- height:
- 41.3 mm / 1.623 inch
- height from the surface:
- 36.9 mm / 1.453 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 800 V
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 7.5 mm / 0.295 inch
- pole no:
- 2
- rated current:
- 50 A
- rated current csa use group b:
- 44 A
- rated current csa use group c:
- 44 A
- rated current ul use group b:
- 50 A
- rated current ul use group c:
- 50 A
- rated surge voltage ii 2:
- 8 kV
- rated surge voltage iii 2:
- 8 kV
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 600 V
- rated voltage csa use group c:
- 600 V
- rated voltage iii 2:
- 1000 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (staggered)
- solder pin dimensions:
- 1.6 x 1.2 mm
- solder pin length:
- 4.4 mm
- solid conductor:
- 0.5 10 mm / 20 8 AWG
- strip length:
- 13 15 mm / 0.51 0.59 inch
- weight:
- 17.018 g
- width:
- 17.7 mm / 0.697 inch
