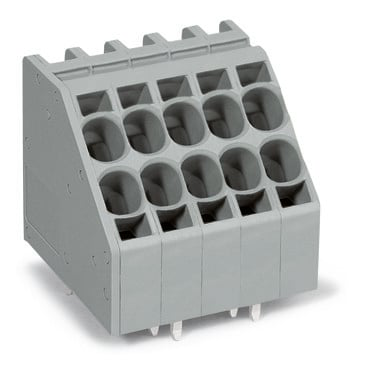

WAGO 746-2304 2-Conductor PCB Terminal Block, 4-Pole, 7.5mm Pitch, Push-In CAGE CLAMP®, 50A, 1000V
Wago
$8.18
2-conductor PCB terminal block; 10 mm; Pin spacing 7.5 mm; 4-pole; Push-in CAGE CLAMPp>
- Two-conductor terminal strips with screwdriver actuation and Push-in CAGE CLAMP<sup></sup> connection
- Double entries for supply and power distribution
- Simple, reliable connection via clamping units featuring individual operating slots
- 600 V UL per UL 1059
- Simple, push-in termination of solid and ferruled conductors
- Marker slot for miniature WSB and WMB markers
The WAGO component equivalent to 7462304 is a specific part or module used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, often utilized in various industrial applications. This component ensures secure and stable connections, contributing to the overall performance and safety of the system in which it is integrated.
- actuation type:
- Operating tool
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- conductor connection direction to pcb:
- 45
- connection technology:
- Push-in CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 37 mm / 1.457 inch
- drilled hole diameter with tolerance:
- 2.2 (+0.1) mm
- fine stranded conductor:
- 0.5 10 mm / 20 8 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 6 mm
- fine stranded conductor with uninsulated ferrule:
- 0.5 6 mm
- fire load:
- 0.545 MJ
- flammability class per ul94:
- V0
- height:
- 41.3 mm / 1.623 inch
- height from the surface:
- 36.9 mm / 1.453 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 800 V
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 7.5 mm / 0.295 inch
- pole no:
- 4
- rated current:
- 50 A
- rated current csa use group b:
- 44 A
- rated current csa use group c:
- 44 A
- rated current ul use group b:
- 50 A
- rated current ul use group c:
- 50 A
- rated surge voltage ii 2:
- 8 kV
- rated surge voltage iii 2:
- 8 kV
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 600 V
- rated voltage csa use group c:
- 600 V
- rated voltage iii 2:
- 1000 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (staggered)
- solder pin dimensions:
- 1.6 x 1.2 mm
- solder pin length:
- 4.4 mm
- solid conductor:
- 0.5 10 mm / 20 8 AWG
- strip length:
- 13 15 mm / 0.51 0.59 inch
- weight:
- 32.124 g
- width:
- 32.7 mm / 1.287 inch
