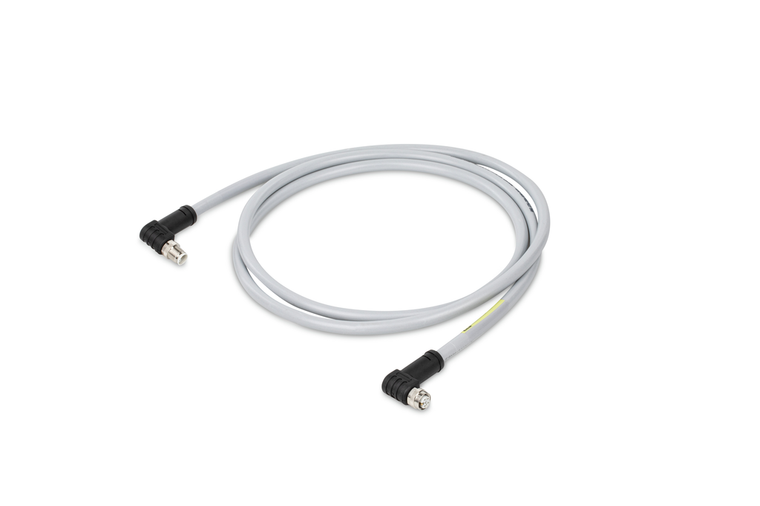

WAGO 756-3506/050-075
Wago
$204.10
Power cable; M12L socket; angled; M12L plug; angled; 5-pole; Length: 7.5 m.
The WAGO component equivalent to 7563506050075 is a specific part or module used in various applications, likely within the realm of electrical engineering or automation. This component is identified by its unique part number, which helps in ensuring compatibility and proper functionality within systems that require precise and reliable components.
- bending cycles:
- 10 Mio.
- bending radius:
- Fixed: >4x: Flexible: >7.5x
- cable connection direction to mating direction:
- 90
- cable connection direction to mating direction 2:
- 90
- cable length:
- 7.5 m
- conductor design:
- Bare copper wire (84 x 0.15 mm)
- conductor insulation:
- PP9Y (halogen-free)
- conductor resistance:
- 13,7 /km
- connection type:
- M12 socket - M12 plug
- connector interface coding cable adapter 1 1:
- L-coded
- contact resistance:
- 5 m
- country of origin sales organisation germany:
- DE
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- housing material:
- TPU/TPU, black (~ RAL 9005)
- insulation resistance:
- 1000 M
- operating current:
- 16 A
- operating voltage:
- 63 VDC per IEC 60664-1
- packaging type:
- Not packed
- plc manufacturer:
- WAGO
- pole no:
- 5
- pollution degree 5:
- 3 per IEC 60664-1
- protection type:
- IP68
- rated surge voltage:
- 1.5 kV per IEC 61076-2-111
- sheathed cable color:
- Gray
- sheathed cable diameter:
- 9.6 10.2 mm
- surrounding air operating temperature dynamic:
- -30 +90 C
- surrounding air operating temperature static:
- -40 +90 C
- surrounding air temperature operation:
- -40 90 C (UL max. +80 C)
- tightening torque:
- 1 Nm
- type code:
- LiF9YH-11Y-0B 5x1.5mm
- weight:
- 1111.000 g
