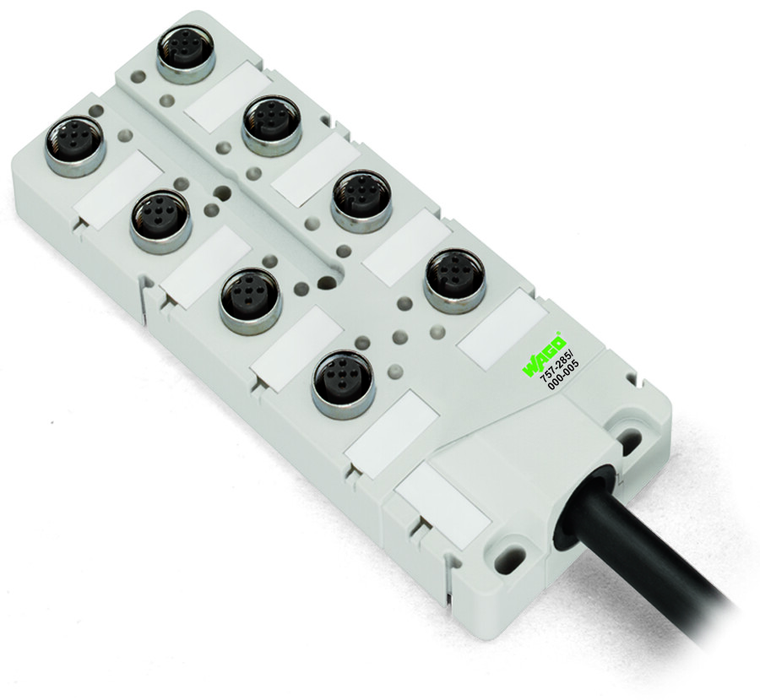

M12 sensor/actuator box; 4-way; 4-pole; 10m connecting cable
- M12 sensor/actuator box, 4-way
- 4-pole (1 signal per contact)
- Cable length 5m or 10m
- Green LED operating indicator
- Yellow LED status indicator
- incl. tag labels (10 pcs)
- incl. M12 protective caps (2 pcs)
The WAGO 757 series passive field connection box is designed for sensor and actuator devices, featuring a 4-pole M12 S/A-Box with 4-port connection capability and a 10-meter cable with bare end flying leads and 4 x 4-pin M12 connectors. It operates on a supply voltage of 10-30Vdc (nominally 12Vdc/24Vdc) and is colored RAL 7035 Gray. The box is screw-mounted, rated IP68 for protection, and can function in ambient temperatures ranging from -25°C to +80°C. Made from Polyamide (PA) 66, it is halogen-free and equivalent to model 757244000010.
- bending radius:
- 10 x cable diameter (min.) for flexible application
- cable design:
- Wire cross-section: 0.34 mm: Wire cross-section 2: 1 mm
- connection technology inputs outputs:
- 4 x M12 socket: 4-pole: incl. ground
- connection technology trunk cable:
- 1 x Fixed connecting cable
- contact resistance max:
- 0.01
- country of origin sales organisation germany:
- DE
- current carrying capacity signal connections:
- 0.0833333333333333
- current carrying capacity supply connections:
- 0.375
- depth:
- 117 mm / 4.606 inch
- encapsulation:
- Fully encapsulated with conformal coating (UL 94 V0)
- halogen free:
- Yes
- height:
- 26 mm / 1.024 inch
- housing material:
- PA 66 (UL 94 V0): RAL 7035: silicon and halogen free
- indicators:
- LED (A) yellow: Signal status (1 x per contact): LED (U) green: Sensor/actuator box status
- insulation resistance:
- 1000 M
- length of connecting cable:
- 10 m
- material properties of the connections:
- Contact: CuSn, nickel base-coat plating and 0.8 m gold-plated: Threaded bush: die-cast Zn, nickel-plated: Seal: Viton: 50 mating cycles
- mounting type:
- Screw mount
- note on protection type:
- 72 h at a depth of 1 m under water per EN 60529 in the fully locked position with its plugs or protective caps
- packaging type:
- Box
- pollution degree 5:
- 3 per VDE 0110
- protection type:
- IP68
- rated value of electrical isolation:
- 500 V
- sheath material:
- PUR
- sheathed cable color:
- Black
- sheathed cable diameter:
- 7.5 mm
- shock resistance:
- Per IEC 60068-2-27
- signal characteristic:
- PNP
- strip length:
- 100 mm / 3.94 inch
- supply voltage:
- 10 30 VDC: Rated voltage: 32 V ~ rms
- surrounding air operating temperature dynamic:
- -5 +80 C
- surrounding air operating temperature static:
- -40 +80 C
- surrounding air temperature operation:
- -25 80 C
- vibration resistance:
- Per IEC 60068-2-6
- width:
- 60 mm / 2.362 inch
- wire colors:
- White, green, yellow, gray, green/yellow, brown, blue
