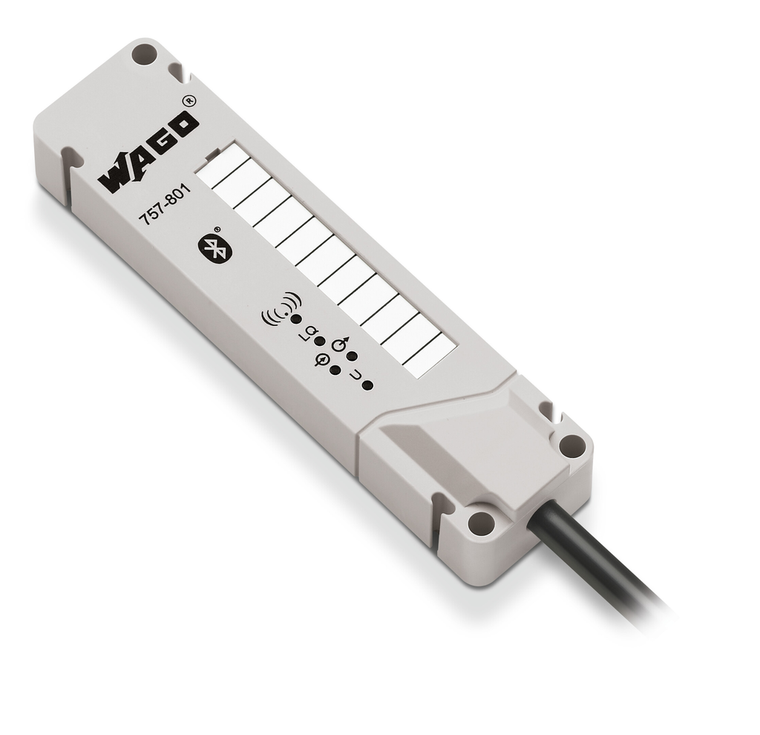

WAGO 757-801
- SKU:
- 757-801
- Condition:
- New
- antenna:
- Integrated
- bending cycles:
- 1 Mio.
- bending radius:
- 10 x cable diameter (min.) for flexible application
- conformity marking:
- CE
- connection technology communication fieldbus:
- RS-232 Serial Interface: x
- connection technology trunk cable:
- 1 x Fixed connecting cable
- country of origin sales organisation germany:
- DE
- depth:
- 117 mm / 4.606 inch
- diagnostics:
- Via visual indicator: Connection status (radio connection quality): Communication via RS-232
- emc emission of interference:
- Per EN 61000-6-3
- emc immunity to interference:
- Per EN 61000-6-2
- fire load:
- 0.000 MJ
- frequency band:
- ISM band, 2402 2483 MHz
- halogen free:
- Yes
- height:
- 20 mm / 0.787 inch
- indicators:
- Five LEDs
- length of connecting cable:
- 5 m
- mounting type:
- Screw mount
- packaging type:
- Box
- protection type:
- IP67
- radio technology:
- Bluetooth 2.1
- receiver sensitivity:
- -82 dBm
- security encryption:
- Bluetooth security mode 4 Secure Simple PairingĀ 128-bit encryption
- sheathed cable color:
- Black
- sheathed cable diameter:
- 6.4 6.8 mm
- shield:
- Copper braiding, tin-plated
- supply voltage:
- 24 VDC (10 32 V)
- supported profiles:
- Serial Port Profile (SPP)
- surrounding air temperature operation:
- -20 60 C
- surrounding air temperature storage:
- -30 80 C
- topology:
- Peer-to-peer connection
- transmission range:
- Class 1/100 m (max.)
- weight:
- 418.000 g
- width:
- 30 mm / 1.181 inch
Description
Bluetooth Module; RS-232; IP67
View AllClose
- AFH (Adaptive Frequency Hopping)
- Adaptive transmission power with configurable upper limits for data exchange and device discovery
- Configurable channel blacklist for FHSS (Frequency Hopping Spread Spectrum)
- Coexistence optimized device discovery supported (media allocation < 5 %, allocation duration < 100 ms)
