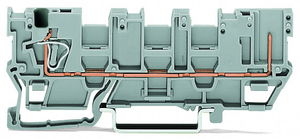

WAGO 769-181

(No reviews yet) Write a Review

Write a Review

WAGO 769-181

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

769-181

UPC:

MPN:

769-181

Condition:

New

actuation type:

Operating tool

color:

Gray

connectable conductor materials:

Copper

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

28.5 mm / 1.122 inch

design:

Horizontal type

fine stranded conductor:

0.08 4 mm / 28 12 AWG

fire load:

0.168 MJ

flammability class per ul94:

V0

height:

87.5 mm / 3.445 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center marking

mounting type:

DIN-35 rail

nominal cross section:

4 mm

nominal voltage iii 3:

400 V

number of connection points:

1

number of connection points 2:

1

packaging type:

Box

pole no:

2

rated current:

16 A

rated surge voltage iii 3:

6 kV

safety information 1:

2-conductor female plugs cannot be used.

solid conductor:

0.08 4 mm / 28 12 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

7.970 g

width:

5 mm / 0.197 inch

wiring direction:

Front-entry wiring
