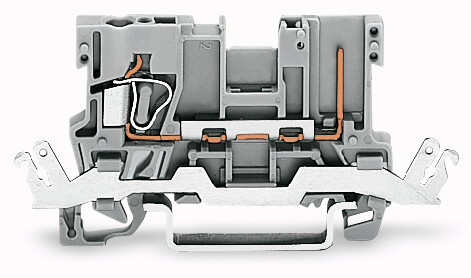

WAGO 769-231 1-Conductor/1-Pin Carrier Terminal Block with Shield Contact for DIN-Rail 35 x 15 and 35 x 7.5, 4 mm², CAGE CLAMP®, Gray
Wago
$3.52
1-conductor/1-pin carrier terminal block; with shield contact; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP; 4,00 mm²; gray.
The WAGO 769 X-COM series carrier feed-through terminal block is a gray, 1-deck/level component with a shield contact and center marking slot. It features one shield-through pole and accommodates two wires (one clamp and one plug-in pin) with a nominal cross-section of 4mm², suitable for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG. The terminal block supports a rated current of 32A and utilizes CAGE CLAMP spring connections along with plug-in pin connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 5mm, equivalent to model 769231.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 28.5 mm / 1.122 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.104 MJ
- flammability class per ul94:
- V0
- height:
- 71.5 mm / 2.815 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 4 mm
- nominal voltage iii 3:
- 250 V
- number of connection points:
- 1
- number of connection points 2:
- 1
- packaging type:
- Box
- rated current:
- 32 A
- rated surge voltage iii 3:
- 4 kV
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 7.516 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
