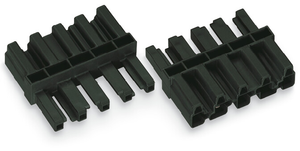

WAGO 770-901 Intermediate Coupler, 5-Pole to 3-Pole, 25A, IP20
Wago
$5.37
Intermediate coupler; 5- to 3-pole; L1 - L
- rotected against mismating and maintenance-free
- Additional variable coding is possible
The WAGO component equivalent to 770901 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical installations, ensuring efficient conductivity and safety. This component is part of WAGO's extensive range of products known for their quality and innovation in the field of electrical engineering and automation.
- application:
- General mains applications
- coding:
- A
- color:
- Black
- contact material:
- Copper or copper alloy (surface-treated)
- continuous operating temperature:
- -35 +85 C
- country of origin sales organisation germany:
- DE
- depth:
- 53.4 mm / 2.102 inch
- distributor type:
- Intermediate coupler
- fire load:
- 0.338 MJ
- height:
- 13 mm / 0.512 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- locking lever:
- Yes
- locking of plug in connection:
- Locking lever
- marking:
- L1 - L N
- mating force of a plug in connection:
- Approx. 20 70 N (depending on pole number)
- mismating protection:
- Yes
- nominal voltage iii 3:
- 400 V
- note on continuous operating temperature:
- Insulating parts for temperatures ¤ 105 C
- note on mismating protection:
- All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
- number of mating cycles:
- 200, without resistive load
- packaging type:
- Box
- pin spacing:
- 10 mm / 0.394 inch
- pole no:
- 5
- processing temperature:
- -5 +40 C
- protection class:
- IP20: When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
- rated current:
- 25 A
- rated current ul 1977:
- 23 A
- rated surge voltage iii 3:
- 6 kV
- rated surge voltage iii 3 2:
- 4 kV
- rated voltage iii 3 2:
- 250 V
- rated voltage ul 1977:
- 600 V
- ratings per:
- IEC/EN 60664-1
- retention force of a plug in connection:
- When locked: > 80 N
- suitable:
- 5- to 3-pole: L1 - L
- unmating force of a plug in connection:
- Unlocked: approx. 20 70 N (depending on pole number)
- weight:
- 15.300 g
- width:
- 47.8 mm / 1.882 inch
