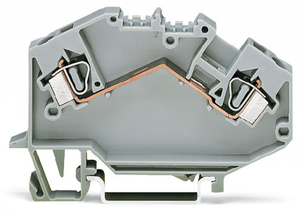

WAGO 781-653 2-conductor power distribution disconnect terminal block, 4 mm², CAGE CLAMP®, gray
Wago
$7.86
Power distribution disconnect terminal block; angled; rail mount; 2-conductor; 6 mm wide; gray.
The WAGO 781 TOPJOB Classic series is a gray power distribution feed-through terminal block featuring a single deck with a slide-link pole-disconnect and a center marking slot. It accommodates one feed-through pole with two wires using one clamp each, suitable for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG. The terminal block is rated for a current of 32A and utilizes CAGE CLAMP spring connections for secure wiring. It is designed for DIN-35 rail mounting with a width of 6mm and is equivalent to the model 781653.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- PL
- depth from upper edge of din rail:
- 43.5 mm / 1.713 inch
- design:
- Angled
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.211 MJ
- flammability class per ul94:
- V0
- height:
- 77 mm / 3.031 inch
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 400 V
- note:
- Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
- packaging type:
- Box
- rated current:
- 32 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 17.910 g
- width:
- 6 mm / 0.236 inch
- wiring direction:
- Front-entry wiring
