Wago

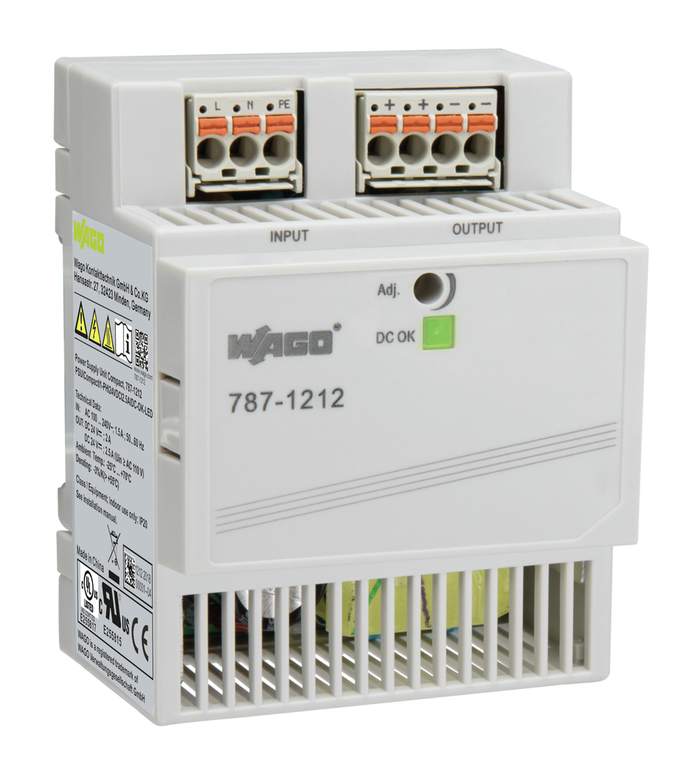

WAGO 787-1212

SKU:

787-1212

UPC:

MPN:

787-1212

Condition:

New

conformity marking:

CE

connection technology:

Push-in CAGE CLAMP

connection type 1:

Input/output

control deviation:

¤ 1 %

country of origin sales organisation germany:

CN

default setting:

DC 24 V

depth:

56 mm / 2.205 inch

depth from upper edge of din rail:

52.5 mm / 2.067 inch

derating:

-2.66 %/K (> 55 C)

deviation dynamic load change 10 90:

¤ 1 %

discharge current:

¤ 0.25 mA

efficiency typ:

89 % (230 VAC): 87 % (110 VAC)

fine stranded conductor:

0.2 2.5 mm / 24 12 AWG

fire load:

0.117 MJ

flammability class per ul94:

V0

height:

90 mm / 3.543 inch

input current ii:

¤ 1.5 A

input voltage derating:

-2 %/V (< 100 VAC): -1.33 %/V (< 140 VDC)

input voltage range:

AC 85 264 V: DC 125 375 V

inrush current:

¤ 20 A

internal fuse:

T 2 A / 250 VAC

isolation voltage pri sec:

DC 4.242 kV

mains failure hold up time:

60 ms

mounting type:

DIN-35 rail || Screw mount (back/side)

mtbf:

> 500,000 h (per IEC 61709)

nominal input voltage ui nom:

1 x AC 100 240 V

nominal mains frequency range:

47 63 Hz: 0 Hz

nominal output current io nom:

2.5 A: 2 A (< 110 VAC)

nominal output power:

60 W

nominal output voltage uo nom:

DC 24 V (SELV)

note dimensions:

Depth: 48 mm (without cover)

open circuit proof:

Yes

operation status indicator:

Green LED (Uo)

output voltage range:

DC 22 26 V (adjustable)

overload behavior:

Constant power (in overload range: 1.05 1.35 x Io nom): Shutdown and automatic restart in the event of a short circuit or permanent overload

overvoltage protection secondary:

¤ 31 VDC (in the event of a fault)

packaging type:

Box

parallel operation:

Yes

phases:

1

pollution degree:

2

power factor:

0.5

power factor correction pfc:

Passive

power loss max pl max:

9 W (100 VAC / 24 VDC: 2.5 A)

power loss pl:

¤ 0.6 W (230 VAC: No load)

protection class:

I

protection type:

IP20 (per EN 60529)

recommended backup fusing:

Circuit breaker: 6 A (C characteristic), 10 A (B characteristic) or higher

relative humidity:

¤ 95% (no condensation permissible)

required backup fusing:

An external DC fuse is required for the DC input voltage.

residual ripple:

¤ 100 mV (Peak-to-peak)

resistance to reverse feed:

¤ DC 35 V

series operation:

Yes

short circuit protected:

Yes

signaling:

1 x LED DC OK (green)

solid conductor:

0.2 2.5 mm / 24 12 AWG

standards specifications:

EN 61204-3 || EN 60335-1 || EN 62368-1 || UL 60950-1 || UL 508

strip length:

9 10 mm / 0.35 0.39 inch

surrounding air temperature operation:

-25 70 C

surrounding air temperature storage:

-40 85 C

transient suppression primary:

Varistor

wago connector:

picoMAX 5.0, WAGO 2092 Series

weight:

288.000 g

width:

72 mm / 2.835 inch
