WAGO 788-108
Wago
$7.77

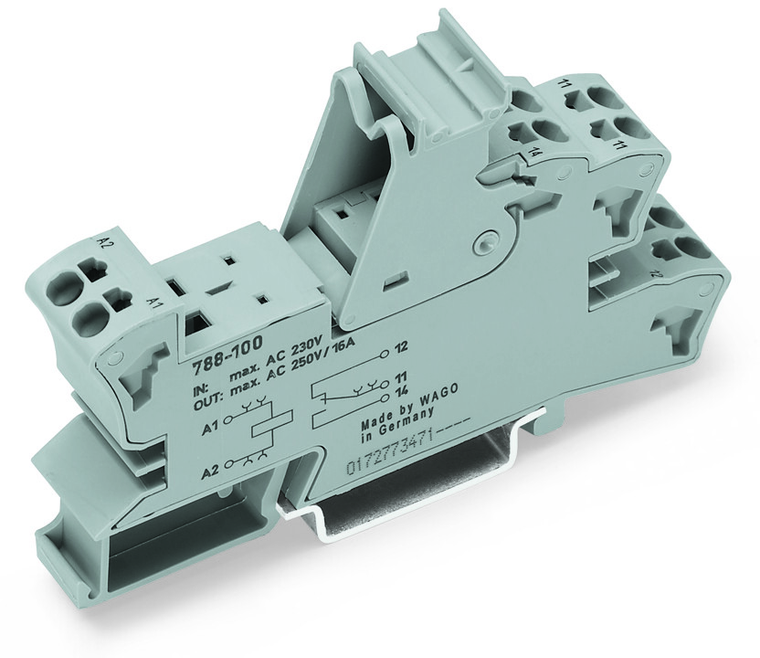

Relay socket; Relay with 1 changeover contact (1u)
Technical Data
- Nominal input voltage U<sub>N</sub>: AC/DC 250 V (depending on relay)
- Input voltage range: AC/DC 0 250 V
- Number of changeover/switchover contacts: 1
- Limiting continuous current: 16 A
- Max. switching voltage: AC 250 V
- Max. switching power (resistive): AC 4000 VA
- Rated voltage: 250 V
- Rated impulse voltage: 4 kV
- Pollution degree: 3
- Dielectric strength, control/load circuit (AC, 1 min): 6 kVrms (depending on relay))
- Dielectric strength open contact (AC, 1 min): 1 kVrms (depending on relay))
- Protection class: IP20
Connection Data
- Connection technology: Push-in CAGE CLAMP<sup></sup>
- Solid conductor: 0.34 2.5 mm / 22 14 AWG
- Fine-stranded conductor: 0.34 2.5 mm / 22 14 AWG
- Strip length: 9 10 mm / 0.35 0.39 inch
Geometrical Data
- Width: 15 mm / 0.591 inch
- Height from upper-edge of DIN-35 rail: 73 mm / 2.874 inch
- Depth: 86 mm / 3.386 inch
Mechanical Data
- Type of mounting: DIN-35 rail
Material Data
- Fire load: 0.662 MJ
- Weight: 32.000 g
Environmental Requirements
- Surrounding air (operating) temperature at U<sub>N</sub>: -40 70 C (depending on relay)
- Surrounding air (storage) temperature: -40 80 C
- Processing temperature: -25 +50 C
Standards and specifications
- Standards/specifications: EN 60664-1
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454931032
- Customs Tariff No.: 85366990990
The WAGO 788 series relay base/socket module is manually operated and designed for 1C/O configurations. It supports a control voltage of 250Vac/250Vdc and a continuous rated current of 16A. The module features Push-in CAGE CLAMP spring connections and is suitable for DIN-35 rail mounting with a width of 15mm. It has an IP20 protection rating and is compatible with 1 SPST/C/O 25mm relays, equivalent to model 788108.
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 73 mm / 2.874 inch
- dielectric strength control load circuit ac 1 min:
- 6 kVrms
- dielectric strength open contact ac 1 min:
- 1 kVrms
- fine stranded conductor:
- 0.34 2.5 mm / 22 14 AWG
- fire load:
- 0.662 MJ
- height:
- 86 mm / 3.386 inch
- input voltage range:
- AC/DC 0 250 V
- insulation type between adjacent devices of the the same type:
- Basic insulation
- insulation type control load circuit:
- Reinforced insulation (safe isolation)
- limiting continuous current:
- 16 A
- mounting type:
- DIN-35 rail
- nominal input voltage un:
- AC/DC 230 V
- note:
- Bei den angegebenen technischen Daten handelt es sich um Maximalwerte. Diese knnen durch das verwendete Zubehr eingeschr¤nkt werden.
- number of changeover switchover contacts:
- 1
- operating altitude max:
- 2000 m
- overvoltage category:
- II
- packaging type:
- Box
- pollution degree:
- 3
- processing temperature:
- -25 +50 C
- protection type:
- IP20
- rated voltage:
- 300 V
- relative humidity:
- 5 95 % (no condensation permissible)
- solid conductor:
- 0.34 2.5 mm / 22 14 AWG
- standards specifications:
- EN 61010-2-201
- strip length:
- 9 10 mm / 0.35 0.39 inch
- surrounding air temperature operation at un:
- -40 70 C
- surrounding air temperature storage:
- -40 80 C
- switching voltage max:
- AC 300 V
- weight:
- 32.000 g
- width:
- 15 mm / 0.591 inch
