Wago

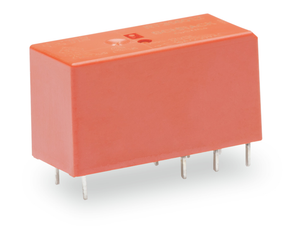

WAGO 788-150

SKU:

788-150

UPC:

MPN:

788-150

Condition:

New

bounce time typ:

6 ms

contact material relay:

AgNi 90/10

country of origin sales organisation germany:

AT

depth:

29 mm / 1.142 inch

dielectric strength control load circuit ac 1 min:

5 kVrms

dielectric strength open contact ac 1 min:

1 kVrms

drop out time typ:

6 ms

electrical life no resistive load 23 c:

30 x 103 switching operations

fire load:

0.000 MJ

height from the surface:

15.7 mm / 0.618 inch

inrush current resistive max:

(AC) 30 A / 4 s

limiting continuous current:

16 A

mechanical life:

30 x 106 switching operations

mounting type:

Pluggable module

nominal input voltage un:

DC 12 V

number of changeover switchover contacts:

1

packaging type:

Box

pull in time typ:

8 ms

recommended minimum load:

12 V / 10 mA

standards specifications:

EN 61810-1

surrounding air temperature operation at un:

-40 85 C

surrounding air temperature storage:

-40 85 C

switching capacity:

AC-15: 6 A / AC 250 V: DC-13: 2 A / DC 24 V

switching frequency with without load max:

6 min-1 / 1200 min-1

switching power resistive max:

AC 4000 VA: DC (see load limit curve)

switching voltage max:

AC 250 V

weight:

14.710 g

width:

12.7 mm / 0.5 inch
