SSR-E DC 24V.

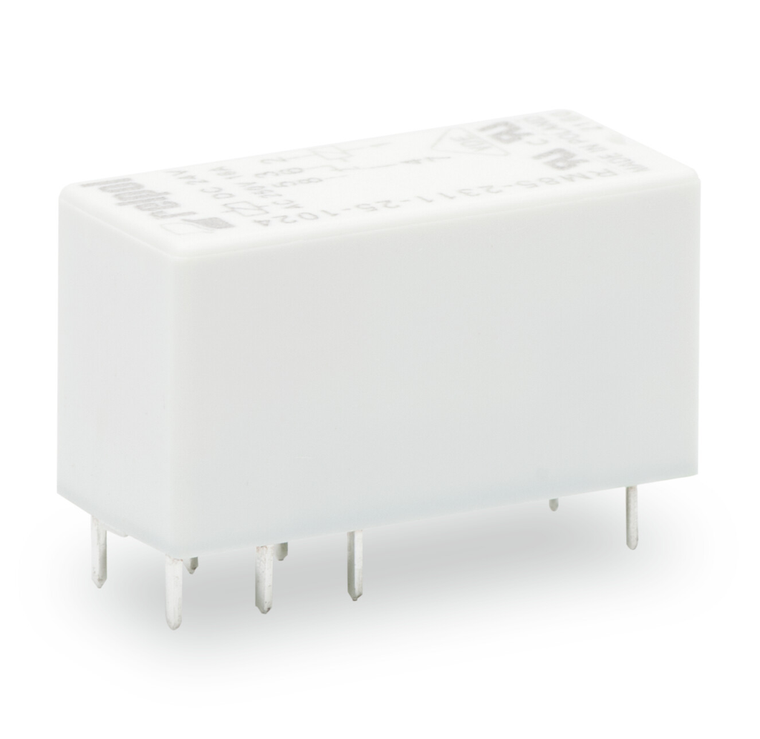

The WAGO 788 series replacement plug-in solid-state relay (SSR) module features a green LED indicator and a 2-wire connection. It is a single-pole, single-phase relay with a control voltage range of 10-30Vdc (24Vdc nominal) and an output rated voltage of 0-35Vdc (24Vdc nominal). The relay supports a continuous rated current of 5A and includes plug-in connections for easy mounting. This module is equivalent to the 788754 model.
- circuit type:
- 2-wire connection
- country of origin sales organisation germany:
- DE
- depth:
- 29 mm / 1.142 inch
- dielectric strength control load circuit ac 1 min:
- 3.51 kVrms
- fire load:
- 0.000 MJ
- height from the surface:
- 15.7 mm / 0.618 inch
- input voltage range high level:
- DC 10 30 V
- input voltage range low level:
- DC 0 9 V
- limiting continuous current:
- 0.208333333333333
- mounting type:
- Pluggable module
- nominal input current at un:
- 11 mA
- nominal input voltage un:
- DC 24 V
- nominal output voltage:
- DC 24 V
- note:
- Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks.
- output voltage range:
- DC 0 35 V
- packaging type:
- Box
- standards specifications:
- EN 61010-2-201 || EN 61000-6-2 || EN 61000-6-3 || EN 61373
- status indicator:
- Green LED
- surrounding air temperature operation at un:
- -30 80 C
- surrounding air temperature storage:
- -40 100 C
- switching current min:
- 1 mA
- switching frequency:
- ¤ 3 kHz
- turn off time:
- ¤ 250 s
- turn on time:
- ¤ 50 s
- voltage drop at output max:
- ¤ DC 0.3 V
- weight:
- 4.000 g
- width:
- 12.7 mm / 0.5 inch
