Current signal conditioner; Current input signal: 80 ADC; Modbus RTU; Supply voltage: 24 VDC.

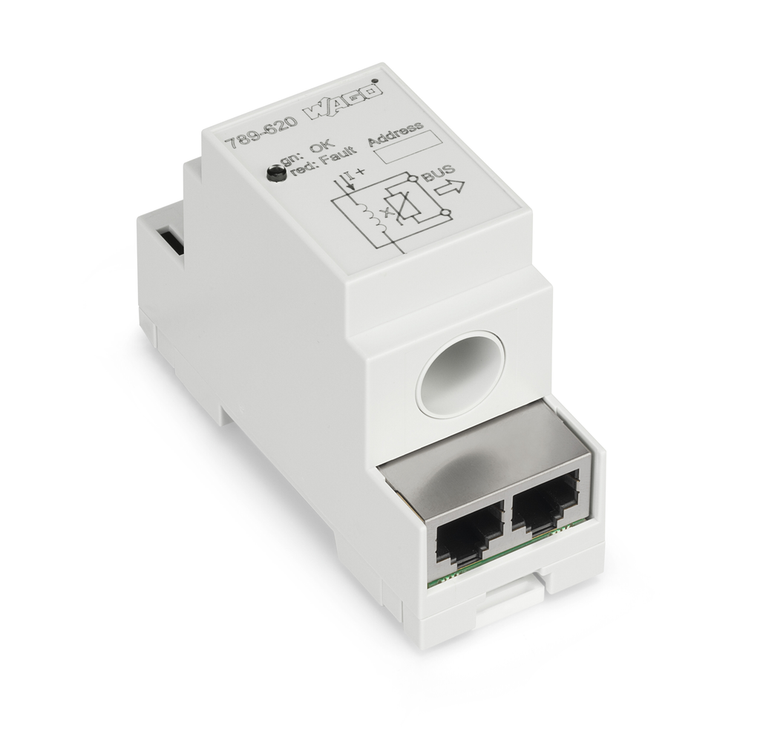

The WAGO 789 series DC digital current sensing transducer features Modbus RTU and RS-485 communication capabilities, operates with a supply voltage of 12-34Vdc, and includes 2 RJ45 connectors. It is designed for DIN-35 rail mounting (35mm width) and has an IP20 protection rating. The device is suitable for ambient temperatures ranging from -20°C to +70°C and is equivalent to model 789620.
- baud rate:
- 19.2 kBd
- bus length max:
- ¤ 1200 m
- communication:
- Modbus RTU
- conformity marking:
- CE
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 55 mm / 2.165 inch
- emc emission of interference:
- EN 61000-6-4
- emc immunity to interference:
- EN 61000-6-2
- feedthrough for measurement conductor:
- 15 mm
- fire load:
- 0.000 MJ
- height:
- 90 mm / 3.543 inch
- input signal current:
- DC 0 80 A
- input signal type:
- Current
- interface:
- RS-485
- mounting type:
- DIN-35 rail
- nominal supply voltage us:
- DC 24 V
- number of devices max:
- 32
- packaging type:
- Box
- parity:
- Even
- pluggable connectors:
- RJ-45
- power consumption at nominal supply voltage:
- ¤ 8 mA
- protection type:
- IP20
- resolution bit:
- 15 bits
- standards specifications:
- DIN EN 50178
- surrounding air temperature operation:
- -20 70 C
- surrounding air temperature storage:
- -40 85 C
- temperature coefficient:
- ¤ 0.01 %/K
- terminating resistor:
- 150 (can be activated via DIP switch 1)
- transmission channels:
- Half duplex: 8-bit data: 1 stop bit
- transmission error typ:
- ¤ 0.5 % of upper-range value (at room temperature)
- weight:
- 80.200 g
- width:
- 35 mm / 1.378 inch
