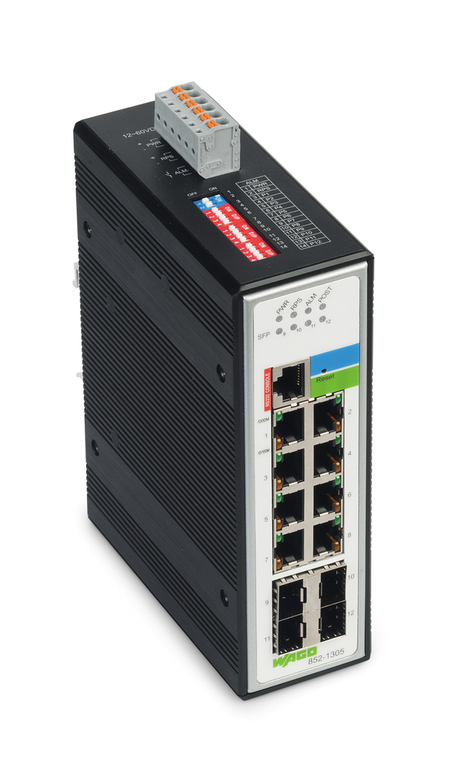

WAGO 852-1305

(No reviews yet) Write a Review
SKU:
852-1305
MPN:
852-1305
Condition:
New
baud rate:
Copper cable: 10/1000 Mbit/s: Fiber optic:1000 Mbit/s
color:
Metallic black
communication standards:
IEEE 802.3 10BASE-T || IEEE 802.3u 100BASE-TX || IEEE 802.3ab 1000BASE-T || IEEE 802.3z 1000BASE-SX/LX || IEEE 802.3x Flow Control || IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) || IEEE 802.1Q VLAN Tagging || IEEE 802.1ab Link Layer Discovery Pro
configuration options:
DIP switch for signal contact || Command Line Interface || SNMPv1/v2c/v3
conformity marking:
CE
connection technology communication fieldbus:
Copper cable: 8 x RJ-45: Fiber optic: 4 x SFP: LC fiber-optic connector
connection technology supply:
1 x Built-in male connector: 231-436/001-000: included female connector (MCS Connectors): 2231-106/026-000
controls:
14 x DIP switch: Alarm function power supplies and ports 1 12: 1 x Reset button: system restart
country of origin sales organisation germany:
TW
depth:
120 mm / 4.724 inch
diagnostics:
Signal contact, Modbus/TCP, port status, port statistics, port load, traffic monitor, SFP information, syslog, mail alarm, SNMP traps
emc emission of interference:
Per EN 61000-6-4
emc immunity to interference:
Per EN 61000-6-2
esd contact air discharge:
8 KV / 15 KV
fire load:
0.234 MJ
height:
162 mm / 6.378 inch
housing material:
Aluminum
indicators:
Device: LED (PWR, RPS, POST) green: power supply (primary), redundant power supply (secondary), POST function: LED (ALM) red: Alarm: LED (SFP) green, Status fiber optic ports: per port: LED (100, LNK/ACT) green: Status 100 Mbps, LNK/ACT ports 1
jumbo frame size:
10000 Byte
mac table size:
16000 addresses
mounting type:
DIN-35 rail
number of 1000base sx lx ports:
4
number of 1000base t ports:
8
optical fiber type:
Single-mode and multi-mode
packaging type:
Box
power consumption max:
18 W
protection type:
IP30
redundancy function:
Redundant DC power supply: STP: RSTP: MSTP: Jet Ring < 300 ms: Xpress Ring < 20 ms: Dual Homing < 20 ms: Dual Ring: ERPSv2 < 50 ms: LCAP
relative humidity without condensation:
0.95
shock resistance:
Per IEC 60068-2-27
supply voltage:
12 60 VDC: Cable length:< 3 m
surrounding air temperature operation:
-40 70 C
surrounding air temperature storage:
-40 80 C
switching mode:
Storeandforward: non-blocking
transmission medium communication fieldbus:
Copper cable: Cat. 5 or higher, 100 m maximum cable length: Fiber optic: SX Multi-Mode, LX Single-Mode
vibration resistance:
Per IEC 60068-2-6
vlan:
Port-based and tag-based (4k VIDs)
weight:
910.000 g
width:
50 mm / 1.969 inch
  • Wago 852-1305
  • Wago 852-1305
$1,224.00

Description
Description Industrial-Managed-Switch; 8-Port 1000BASE-T; 4-Slot 1000BASE-SX/LX
Remarks Item description:

The 8521305 Industrial Managed Switch is an 8-port 10/100/1000BaseTX and 4-port SFP-100BaseSX/LX configurable ETHERNET switch (SFP modules are optional).

The switch has a rugged housing, redundant power supply and function monitoring with a relay. These functions, along with extensive ETHERNET switch options, make it ideal for a wide range of applications.

Features:

  • Web-based/SNMP Management
  • Redundant DC power supply
  • Wide supply voltage range: 12 ... 60 VDC
  • DIP switches to set alarm functions
  • Full compliance with IEEE802.3, 802.3u, 802.3z, 802.3x, 802.3ad, 802.3ab, 802.1d, 802.1q, 802.1p, 802.1w, 802.1x standards
  • Xpress Ring (redundant ring, recovery < 50 ms)
  • Nonblocking, storeandforward switching, rapid spanning tree protocol (RSTP)
  • Autonegotiation at all 10/100/1000Base-T ports
  • AutoMDI/MDIX (crossover) at all 10/100/1000BaseT ports
  • VLAN (802.1q) VID
  • IGMP snooping for multicast filtering
  • Port configuration, status, statistics
  • Port trunking
  • SNMP v1/v2 and RMON



Ports: 8 x 10/100/1000Base-T (RJ-45); 4 x SFP 1000Base-SX/LX, fiber optic; 1 x RS-232 (RJ-45)

Standards: IEEE 802.3u 100Base-TX/FX; IEEE 802.3ad Link Aggregation; IEEE 802.3 10Base-T; IEEE 802.1d Spanning Tree Protocol; IEEE 802.3x Flow Control; IEEE 802.1p CoS Prioritization; IEEE 802.1q VLAN Tagging; IEEE 802.3ab LLDP; IEEE 802.3ab 1000Base-T; IEEE 802.3w Rapid Spanning Tree Protocol; IEEE 802.3z 1000Base-SX/LX; IEEE 802.1x Port Authentication

Maximum length: 10/100/1000Base-T: 100 m; Fiber optic: up to 30 km; RS-232: 15 m



Item properties

Miscellaneous

Name Value Unit
Color  Black metallic
Conformity marking  CE
Redundancy function  Supply voltage
Supply voltage  12 ... 60 VDC (line length < 3 m)
MAC table  Up to 16,000 addresses
VLANs  Port- and tag-based (64 VIDs)
Wavelength (optical fibers)  Depends on SFP module
Energy consumption max. [W]  18  W
Degree of protection  IP30
Width  50 mm / 1.969 Inch
Height from upper-edge of DIN-35 rail  120 mm / 4.724 Inch
Depth  162 mm / 6.378 Inch
Housing material  Aluminum
Storage temperature  -40 ... +80
Relative air humidity (no condensation) [%]  95  %
Relative humidity  95 % non-condensing
Type of mounting  DIN-35 x 15 carrier rail
EMC emission of interference  acc. to EN 61000-6-4
EMC immunity to interference  acc. to EN 61000-6-2
Shock resistance  acc. to IECacc. to IEC 60068-2-27
Vibration resistance  acc. to IECacc. to IEC 60068-2-6
.

The WAGO 852 series is a 13-port industrial Gigabit managed Ethernet network switch designed for robust performance with redundant DC power supply capabilities. It features 8 RJ45 ports (1000BASE-T), 4 SFP ports (1000BASE-SX/LX) for single-mode or multi-mode fiber connections, and 1 RS-232 port. The switch supports Ethernet/IP communication and operates on a supply voltage range of 12-60Vdc. It is suitable for DIN-35 rail or wall mounting, has a compact 50mm width, and is rated for operation in extreme temperatures ranging from -40°C to +70°C, with an IP30 protection rating.
