Wago

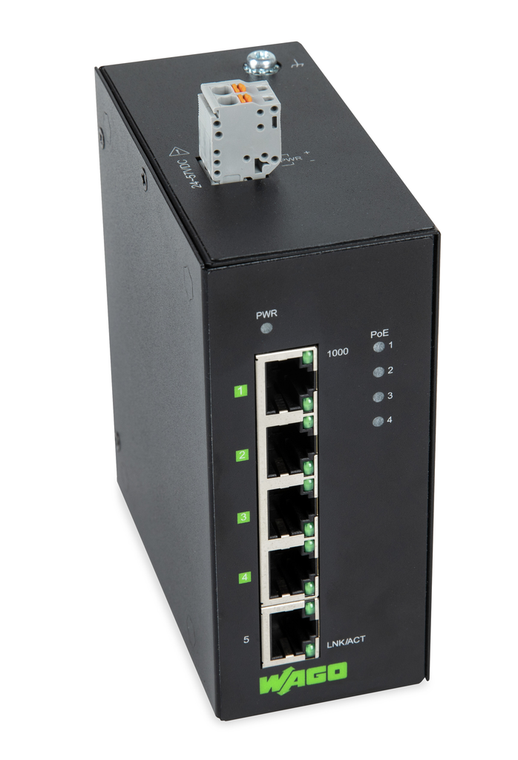

WAGO 852-1411/000-001

SKU:

852-1411/000-001

UPC:

MPN:

852-1411/000-001

Condition:

New

baud rate:

Copper cable: 10/1000 Mbit/s

color:

Black

communication standards:

IEEE 802.3 10BASE-T || IEEE 802.3u 100BASE-TX || IEEE 802.3ab 1000BASE-T || IEEE 802.3x Flow Control || IEEE 802.3af Power over Ethernet (PoE) || IEEE 802.3at High Power over Ethernet (PoE+) || IEEE 802.1p Prioritization

connection technology communication fieldbus:

Copper cable: 5 x RJ-45

connection technology supply:

1 x Built-in male connector: 231-432/001-000: included female connector (MCS Connectors): 2231-102/026-000

country of origin sales organisation germany:

TW

depth:

115 mm / 4.528 inch

emc emission of interference:

Per EN 61000-6-4

emc immunity to interference:

Per EN 61000-6-2

fire load:

0.087 MJ

height:

104 mm / 4.094 inch

indicators:

Device: LED (PWR) green: Power supply: LED (PoE 1 4) green: Power over Ethernet: per port: LED (1000, LNK/ACT) green: Status 1000 Mbit/s, LNK/ACT ports 1 5

jumbo frame size:

10000 Byte

mac table size:

8000 addresses

mounting type:

DIN-35 rail

number of 1000base t ports:

5

packaging type:

Box

power consumption max:

13 W

power consumption note:

133 W with 4 PoE

protection type:

IP30

relative humidity without condensation:

0.95

shock resistance:

Per IEC 60068-2-27

supply voltage:

24 57 VDC

surrounding air temperature operation:

-40 70 C

surrounding air temperature storage:

-40 80 C

topology:

Star

transmission medium communication fieldbus:

Copper cable: Cat. 5e or higher, 100 m maximum cable length

vibration resistance:

Per IEC 60068-2-6

weight:

550.000 g

width:

50 mm / 1.969 inch
