Wago

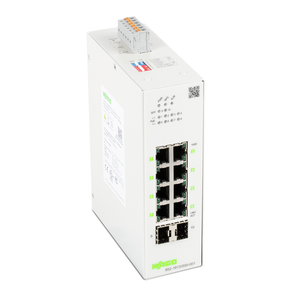

WAGO 852-1813/010-000

SKU:

852-1813/010-000

UPC:

MPN:

852-1813/010-000

Condition:

New

baud rate:

Copper cable: 10/1000 Mbit/s: Fiber optic:1000 Mbit/s

color:

Light gray

communication standards:

IEEE 802.3 10BASE-T || IEEE 802.3u 100BASE-TX/FX || IEEE 802.3ab 1000BASE-T || IEEE 802.3z 1000BASE-SX/LX || IEEE 802.3x Flow Control || IEEE 802.1d Spanning Tree Protocol (STP) || IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) || IEEE 802.1Q VLAN T

configuration options:

DIP switch for signal contact || Web-Based Management || Command Line Interface || SNMPv1/v2c/v3

conformity marking:

CE

connection technology communication fieldbus:

Copper cable: 8 x RJ-45: Fiber optic: 2 x SFP: LC fiber-optic connector

country of origin sales organisation germany:

TW

depth:

100 mm / 3.937 inch

diagnostics:

Signal contact: Modbus TCP: port status: port statistics: port load: traffic monitor: syslog: SNMP traps: loop detection: diagnostics dashboard: topology map

emc emission of interference:

Per EN 61000-6-4

emc immunity to interference:

Per EN 61000-6-2

esd contact air discharge:

8 KV / 15 KV

fire load:

0.000 MJ

height:

116 mm / 4.567 inch

jumbo frame size:

10000 Byte

mac table size:

8000 addresses

mounting type:

DIN-35 rail

number of 1000base t ports:

8

number of 100base fx ports:

2

optical fiber type:

Single-mode and multi-mode

power consumption max:

11 W

protection type:

IP30

redundancy function:

Redundant DC power supply: STP: RSTP: ERPSv1/v2 (max. 2 rings per switch, max. 16 switches per ring, switching time < 800 ms)

relative humidity without condensation:

0.95

security:

Access Control List mit max. 32 Eintrƒƒ±gen: Port Security: Authentication IEEE 802.1X

shock resistance:

Per IEC 60068-2-27

supply voltage:

24 ƒƒ‡ª 48 VDC: (15 %): 24 ƒƒ‡ª 48 VDC (UL)

surrounding air temperature operation:

-10 ƒƒ‡ª 60 C

surrounding air temperature storage:

-40 ƒƒ‡ª 85 C

switching mode:

Storeƒƒ‡ƒƒ‰andƒƒ‡ƒƒ‰forward: non-blocking

transmission medium communication fieldbus:

Fiber optic: SX Multi-Mode, LX Single-Mode

vibration resistance:

Per IEC 60068-2-6

vlan:

Port-based and tag-based (max. 5 VLANs)

weight:

570.000 g

width:

50 mm / 1.969 inch
