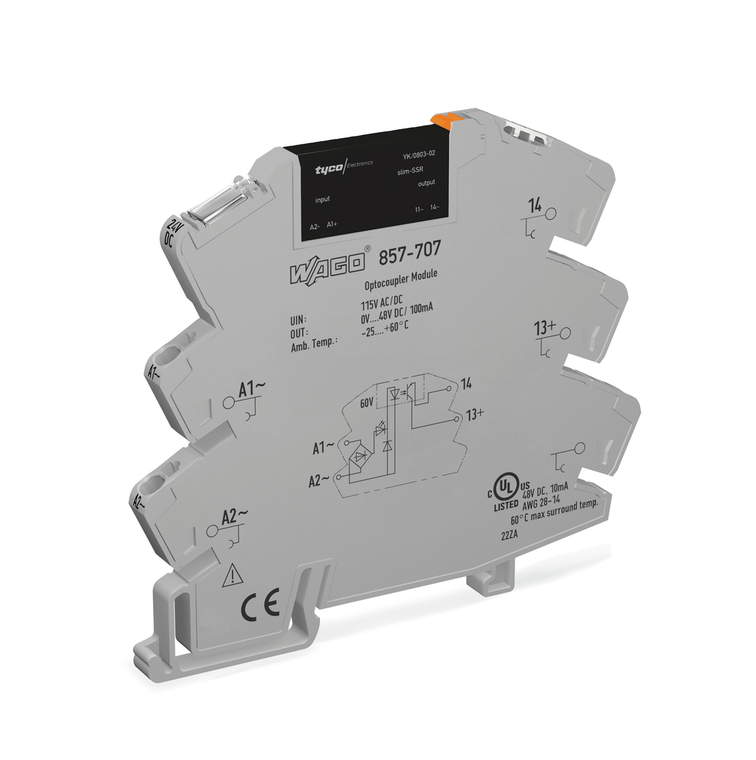

Socket with solid state relay; Input AC/DC 115 V; Output DC 0 V ... 48 V / 0.1 A
Technical Data
- Nominal input voltage U<sub>N</sub>: AC/DC 115 V
- Input voltage range (low level): AC/DC 0 25 V
- Input voltage range (high level): AC/DC 100 138 V
- Nominal input current at U<sub>N</sub>: 4.2 mA
- Circuit type: 2-conductor termination
- Limiting continuous current: 0.1 A
- Nominal output voltage: DC 24 V
- Output voltage range: DC 0 48 V
- Max. voltage drop at output: nbsp;DC 1 V
- Leakage current at nominal voltage: nbsp;1 A
- Min. switching current: 50 A
- Turn-on time: nbsp;4.5 ms
- Drop-out time: nbsp;10 ms
- Switching frequency: nbsp;20 Hz
- Status indication: LED yellow
- Dielectric strength, control/load circuit (AC, 1 min): 3.75 kVrms
- Protection class: IP20
Connection Data
- Connection technology: Push-in CAGE CLAMP<sup></sup>
- Solid conductor: 0.34 2.5 mm / 22 14 AWG
- Fine-stranded conductor: 0.34 2.5 mm / 22 14 AWG
- Strip length: 9 10 mm / 0.35 0.39 inch
Geometrical Data
- Width: 6 mm / 0.236 inch
- Height from upper-edge of DIN-35 rail: 81 mm / 3.189 inch
- Depth: 94 mm / 3.701 inch
Mechanical Data
- Type of mounting: DIN-35 rail
Material Data
- Color: gray
- Fire load: 0.011 MJ
- Weight: 30.000 g
Environmental Requirements
- Surrounding air (operating) temperature at U<sub>N</sub>: -20 60 C
- Surrounding air (storage) temperature: -40 70 C
- Processing temperature: -25 +50 C
Standards and specifications
- Standards/specifications: EN 61000-6-2; EN 61000-6-3; EN 61373; EN 61010-2-201; UL 508
Elementary relay
- WAGO elementary relay: 857-165
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454835507
- Customs Tariff No.: 85365005000
The WAGO 857 series solid-state relay (SSR) features a plug-in input with a pre-assembled socket base and a yellow LED indicator. It supports a 2-wire connection and is designed for single-pole, single-phase applications with a control voltage range of 100-138Vac or 100-138Vdc, nominally 115V. The relay has an output rated voltage of 0-48Vdc, nominally 24Vdc, and a continuous rated current of 0.1A. It includes Push-in CAGE CLAMP connections for easy wiring and is suitable for DIN-35 rail mounting with a 6mm width. The device is IP20 rated and equivalent to model 857707.
- circuit type:
- 2-wire connection
- color:
- Gray
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 81 mm / 3.189 inch
- dielectric strength control load circuit ac 1 min:
- 3.75 kVrms
- fine stranded conductor:
- 0.34 2.5 mm / 22 14 AWG
- fire load:
- 0.000 MJ
- height:
- 94 mm / 3.701 inch
- input voltage range high level:
- AC/DC 100 138 V
- input voltage range low level:
- AC/DC 0 25 V
- leakage current at rated voltage:
- ¤ 1 A
- limiting continuous current:
- 0.1 A
- mounting type:
- DIN-35 rail
- nominal input current at un:
- 4.2 mA
- nominal input voltage un:
- AC/DC 115 V
- nominal output voltage:
- DC 24 V
- note:
- Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks.
- operating altitude max:
- 2000 m
- output voltage range:
- DC 0 48 V
- packaging type:
- Box
- processing temperature:
- -25 +50 C
- protection type:
- IP20
- relative humidity:
- 5 95 % (no condensation permissible)
- solid conductor:
- 0.34 2.5 mm / 22 14 AWG
- standards specifications:
- EN 61000-6-2 || EN 61000-6-3 || EN 61373 || EN 61010-2-201 || UL 508
- status indicator:
- Yellow LED
- strip length:
- 9 10 mm / 0.35 0.39 inch
- surrounding air temperature operation at un:
- -20 60 C
- surrounding air temperature storage:
- -40 70 C
- switching current min:
- 50 A
- switching frequency:
- ¤ 20 Hz
- turn off time:
- ¤ 10 ms
- turn on time:
- ¤ 4.5 ms
- voltage drop at output max:
- ¤ DC 1 V
- wago basic relay:
- 857-165
- weight:
- 30.000 g
- width:
- 6 mm / 0.236 inch
