Wago

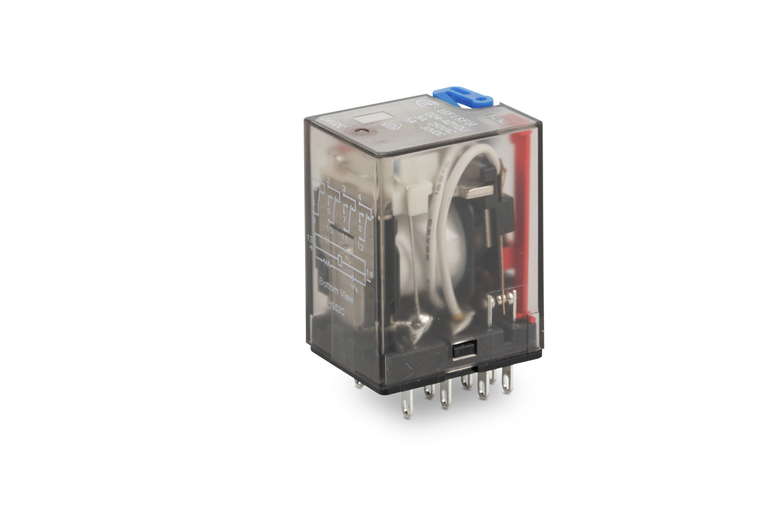

WAGO 858-181 Pack of 3

SKU:

858-181

UPC:

MPN:

858-181

Condition:

New

contact material relay:

AgNi

country of origin sales organisation germany:

DE

depth:

27.5 mm / 1.083 inch

dielectric strength control load circuit ac 1 min:

2.5 kVrms

dielectric strength load load circuit ac 1 min:

2.5 kVrms

dielectric strength open contact ac 1 min:

1.5 kVrms

drop out time typ:

3 ms

electrical life no resistive load 23 c:

100 x 103 switching operations

fire load:

0.000 MJ

height from the surface:

35.6 mm / 1.402 inch

inrush current resistive max:

(AC) 24 A / 4 s

limiting continuous current:

0

mechanical life:

20 x 106 switching operations

mounting type:

Pluggable module

nominal input current at un:

37.5 mA

nominal input voltage un:

DC 24 V

number of changeover switchover contacts:

2

packaging type:

BOX

protection type:

IP20

pull in time typ:

13 ms

recommended minimum load:

10 V / 5 mA / 300 mW

standards specifications:

EN 61810-1

status indicator:

Red LED || Mechanical

surrounding air temperature operation at un:

-40 70 C

surrounding air temperature storage:

-40 85 C

switching capacity:

AC-15: 1.5 A / AC 240 V: DC-13: 0.1 A / DC 250 V

switching frequency with without load max:

20 min-1 / 200 min-1

switching power resistive max:

AC 3000 VA: DC (see load limit curve)

switching voltage max:

AC 250 V

weight:

32.900 g

width:

21.2 mm / 0.835 inch
