Description
RELDC 110V
View AllClose
Technical Data
- Nominal input voltage U<sub>N</sub>: DC 110 V
- Input voltage range: -20 +10 %
- Nominal input current at U<sub>N</sub>: 10 mA
- Number of changeover/switchover contacts: 4
- Contact material (relay): AgCe
- Limiting continuous current: 5 A
- Max. make current (resistive): (AC) 15 A / 4 s
- Max. switching voltage: AC 250 V
- Max. switching power (resistive): AC 1250 VA; DC see load limit curve
- Recommended minimum load: 12 V / 100 mA
- Pull-in time (typ.): 25 ms
- Drop-out time (typ.): 25 ms
- Bounce time (typ): 4 ms
- Electrical life (N.O.; resistive load; 23 C): 100 x 10<sup>3 </sup>switching operations
- Mechanical life: 20 x 10<sup>6</sup> switching operations
- Status indication: Mechanical
- Rated voltage: 250 V
- Rated impulse voltage: 2.5 kV
- Pollution degree: 2
- Dielectric strength, control/load circuit (AC, 1 min): 1.5 kVrms
- Dielectric strength open contact (AC, 1 min): 1 kVrms
- Dielectric strength, load/load circuit (AC, 1 min): 1.5 kVrms
- Protection class: IP20
Connection Data
- Connection technology: Push-in CAGE CLAMP<sup></sup>
- Solid conductor: 0.34 1.5 mm / 22 16 AWG
- Fine-stranded conductor: 0.34 1.5 mm / 22 16 AWG
- Strip length: 9 10 mm / 0.35 0.39 inch
- Note (conductor cross-section): 2 x 0.34 2 x 1.5 mm / 1 x 2.5 mm / 2 x 22 2 x 16 AWG
Geometrical Data
- Width: 31 mm / 1.22 inch
- Height from upper-edge of DIN-35 rail: 73 mm / 2.874 inch
- Depth: 97 mm / 3.819 inch
Mechanical Data
- Type of mounting: DIN-35 rail
Material Data
- Fire load: 0.000 MJ
- Weight: 95.600 g
Environmental Requirements
- Surrounding air (operating) temperature at U<sub>N</sub>: -25 70 C
- Surrounding air (storage) temperature: -40 80 C
- Processing temperature: -25 +50 C
Standards and specifications
- Standards/specifications: EN 61010-2-201; EN 61810-1; EN 61373; UL 508 (max. 50 C)
Elementary relay
- WAGO elementary relay: 858-162
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4055143567862
- Customs Tariff No.: 85364900990

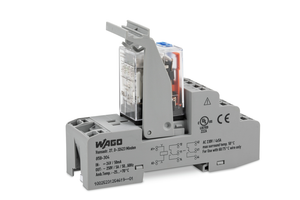

The WAGO 858 series plug-in relay assembly features a socket base, manual operation, and a red LED indicator. It is a 4-pole (4P) relay with a control voltage range of 88-121Vdc (nominal 110Vdc) and a 4C/O (4 Pole Double Throw) contact configuration. The electromechanical design supports a rated current of 5A continuous, 1A at 240Vac (AC-15), and 2A at 24Vdc (DC-13). It includes Push-in CAGE CLAMP connections and is designed for DIN-35 rail mounting with a 31mm width. The relay has an IP20 protection rating and uses Silver-Cerium (AgCe) contacts, equivalent to model 858307.
