Wago

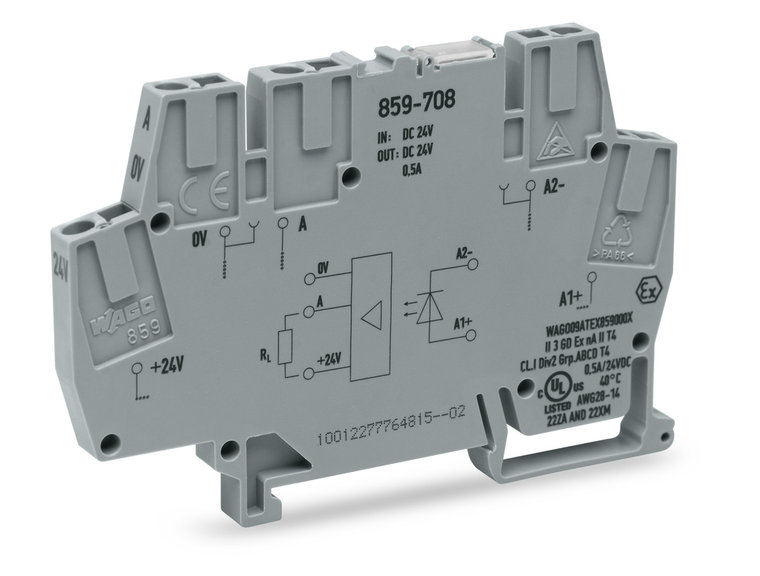

WAGO 859-708

(No reviews yet) Write a Review

Write a Review

Wago

WAGO 859-708

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

859-708

UPC:

MPN:

859-708

Condition:

New

circuit type:

3-wire connection || Low-side switching

color:

Gray

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

56 mm / 2.205 inch

dielectric strength control load circuit ac 1 min:

2.5 kVrms

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

0.313 MJ

height:

91 mm / 3.583 inch

input voltage range high level:

DC 19 30 V

input voltage range low level:

DC 0 5 V

insulation type adjacent devices:

Reinforced insulation (safe isolation)

insulation type control load circuit:

Basic insulation

leakage current at rated voltage:

¤ 10 A

limiting continuous current:

0.5 A

mounting type:

DIN-35 rail

nominal input current at un:

7.7 mA

nominal input voltage un:

DC 24 V

nominal output voltage:

DC 24 V

note:

Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks.

operating altitude max:

2000 m

output closed circuit current without load max:

11 mA

output voltage range:

DC 20 30 V

overvoltage category:

II

packaging type:

Box

pollution degree:

2

processing temperature:

-25 +50 C

rated voltage:

300 V

relative humidity:

5 95 % (no condensation permissible)

solid conductor:

0.08 2.5 mm / 28 14 AWG

standards specifications:

EN 61010-2-201 || EN 61000-6-2 || EN 61000-6-3 || EN 61373 || UL 508

status indicator:

Red LED

strip length:

5 6 mm / 0.2 0.24 inch

surrounding air temperature operation at un:

-25 55 C

surrounding air temperature storage:

-40 70 C

switching frequency:

¤ 10 kHz

turn off time:

¤ 10 s

turn on time:

¤ 10 s

voltage drop at output max:

¤ DC 1.2 V

weight:

18.400 g

width:

6 mm / 0.236 inch
