Wago

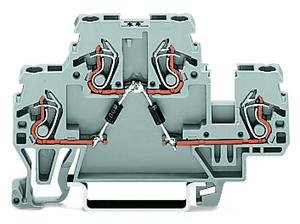

WAGO 870-541/281-872

SKU:

870-541/281-872

UPC:

MPN:

870-541/281-872

Condition:

New

actuation type:

Operating tool

color:

Gray

connectable conductor materials:

Copper

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

40 mm / 1.575 inch

design:

Horizontal type

fine stranded conductor:

0.08 4 mm / 28 12 AWG

fine stranded conductor with insulated ferrule:

0.08 1.5 mm / 28 14 AWG

fire load:

0.168 MJ

flammability class per ul94:

V0

height:

70 mm / 2.756 inch

insulation material:

Polyamide (PA66)

marking level:

Side marking

mounting type:

DIN-35 rail

packaging type:

Box

rated current:

0.5 A

ratings per:

IEC/EN 60947-7-1

safety information 1:

Max. insulation diameter: 4.4 mm

solid conductor:

0.08 2.5 mm / 28 12 AWG

strip length:

6 7 mm / 0.24 0.28 inch

weight:

9.300 g

width:

5 mm / 0.197 inch

wiring direction:

Front-entry wiring
